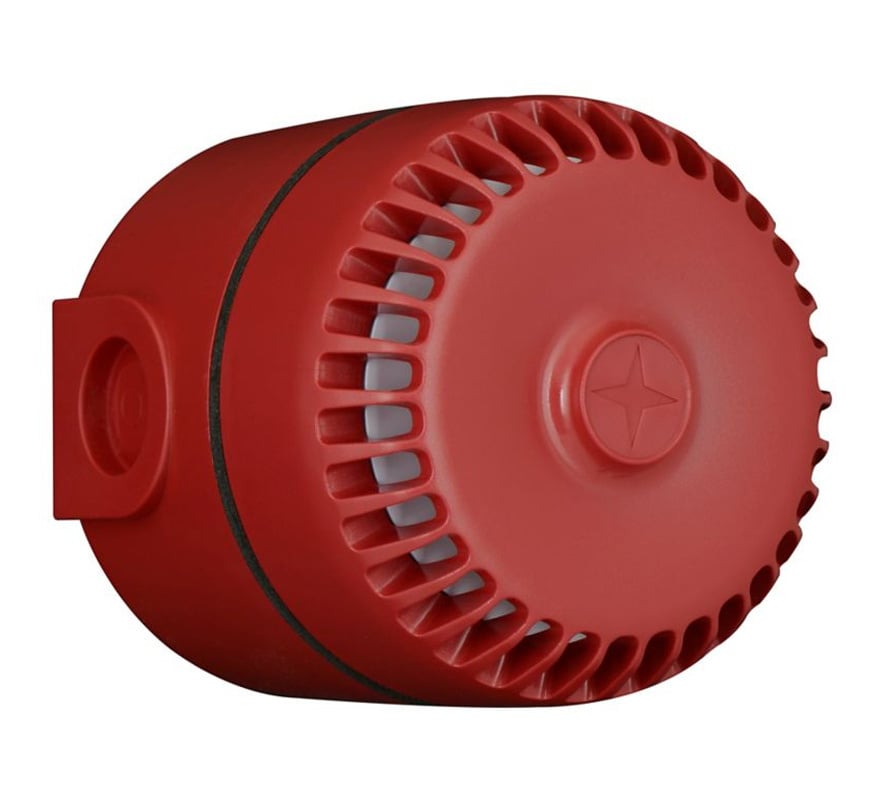

Eaton Fulleon ROLP Roshni Low Profile Sounder - Red, Deep Base (ROLP/SV/R/D)

The Eaton Fulleon RoLP (Roshni Low Profile) ROLP/SV/R/D is a conventional fire alarm sounder with a red body and deep base. The RoLP is one of the most widely used conventional sounders in the fire alarm market and, with its wide operating voltage, also suits security, general signalling and process alarm applications. The deep base gives IP65 protection.

Key features

• 102 dB(A) sound output
• 32 user-selectable tones, including fire-approved and general signalling tones
• Two-stage alarm (alert and alarm)
• Automatic synchronisation for improved tone clarity
• Volume control
• Reverse polarity monitoring
• Red body, deep base (IP65)

Technical specifications

• Voltage: 9-15 V DC / 18-28 V DC
• Current: 12 mA (typical, tone 3)
• Sound output: 102 dB(A) (typical, tone 3)
• Tones: 32
• Volume control: 10 dB
• Monitoring: reverse polarity
• Operating temperature: -25°C to +70°C
• Ingress protection: IP65 (deep base)
• Construction: ABS, red
• Dimensions: 93 mm diameter x 93 mm high (deep base)
• Weight: 0.25 kg
