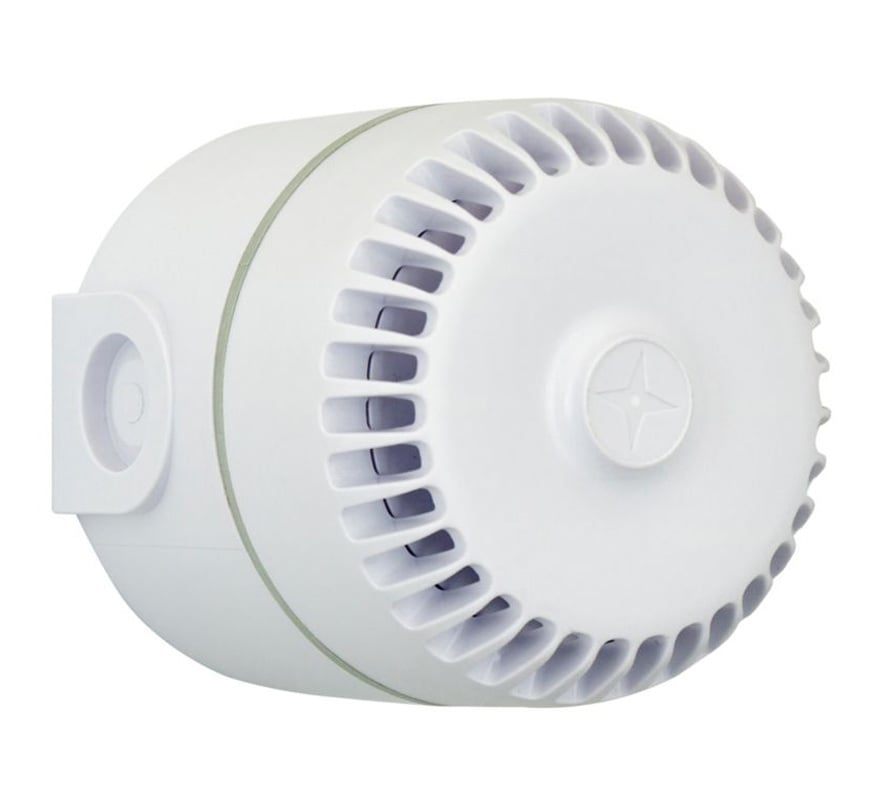

The Eaton Fulleon RoLP (Roshni Low Profile) ROLP/SV/W/D is a conventional electronic sounder with a white body and a deep base. The RoLP is one of the fire alarm market's best known conventional sounders, and is also used for security, general signalling and process alarms.
It has 32 user-selectable tones, including fire-approved and general signalling tones, a two stage alert/alarm function and automatic synchronisation. Its wide operating voltage makes it a flexible sounder suitable for most applications. The deep base gives IP65 protection.
Key features
- 102dB(A) sound output (typical, tone 3)
- 32 user-selectable tones
- Two stage alarm (alert and alarm)
- Automatic synchronisation
- 10dB volume control
- Reverse polarity monitoring
- Certified to EN 54-3
Technical specifications
-
Reference: ROLP/SV/W/D
-
Catalogue number: 540504FULL-0410X
-
Voltage: 9-15V DC or 18-28V DC
-
Current: 12mA (typical, tone 3)
-
Sound output: 102dB(A) (typical, tone 3)
-
Tones: 32
-
Volume control: 10dB
-
Operating temperature: -25°C to +70°C
-
Ingress protection: IP65
-
Construction: ABS
-
Colour: White
-
Dimensions: 93mm diameter x 93mm
-
Weight: 0.25kg
