C-TEC CFP 8 Zone Repeater Panel (CFP760)

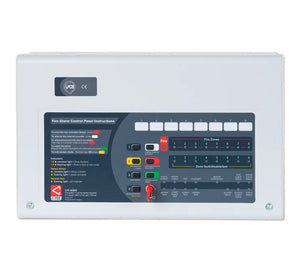

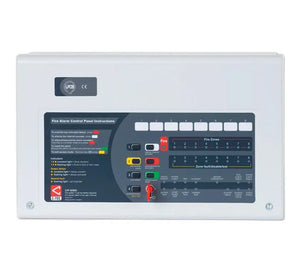

The C-TEC CFP 8 Zone Repeater Panel (CFP760) repeats the functions of a master CFP Standard or CFP AlarmSense 2-8 zone fire panel at remote parts of a site, such as all potential fire service entrances. It gives the user access to all access level 1 and 2 functions.

Key features

• Up to 8 repeaters per CFP master panel
• Own mains power supply with standby battery

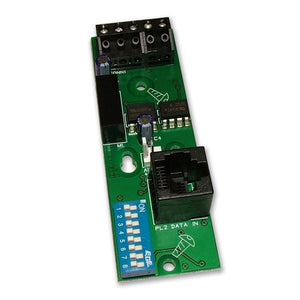

• Communicates over screened two-wire fire-resistant cable using CFP761 network driver cards (one supplied with the repeater; one more required in the master panel)
• Flush or surface mountable plastic enclosure, no bezel required
• Not compatible with CFP Economy panels

Technical specifications

• Part number: CFP760
• Compatibility: C-TEC CFP Standard and CFP AlarmSense panels
• Mains supply: 230V 50/60Hz
• Internal power supply: 19-28.5V (27V nominal)
• Batteries: 2 x 12V 2.1Ah VRLA for 72 hours standby, or 2 x 12V 1.2Ah for 24 hours
• Max. network cable length: 1km
• Dimensions: 380 x 235 x 96mm (W x H x D)
• Construction: Plastic lid and base, RAL 7035 textured, IP30
• Weight: 1.75kg without batteries
• Operating conditions: -5°C to +40°C, max. 95% RH
