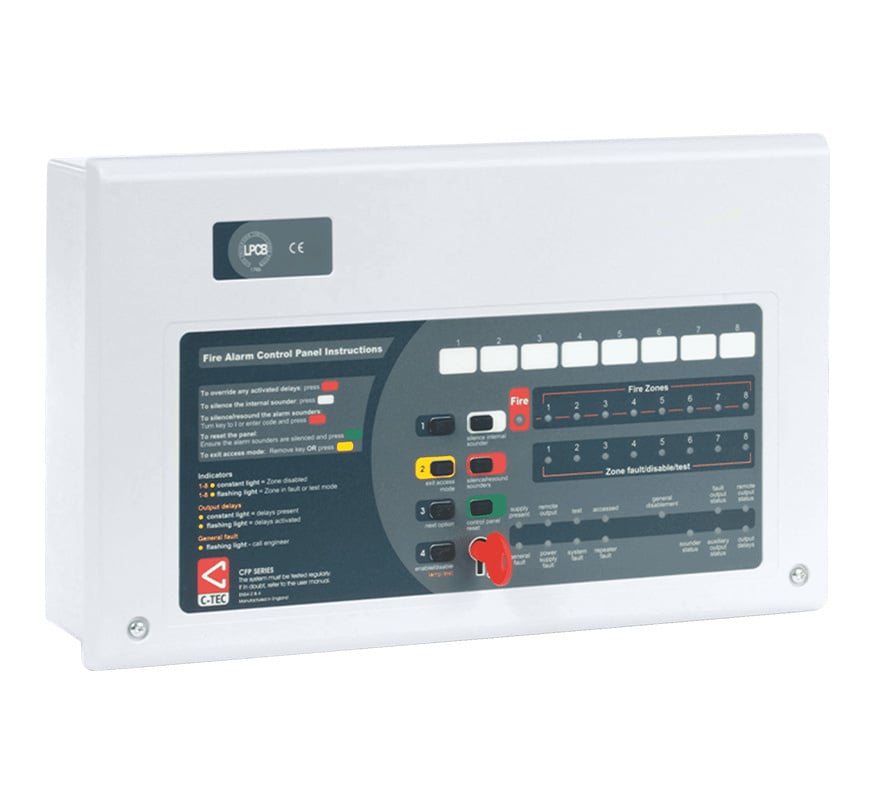

The C-TEC CFP 8 Zone Repeater Panel (CFP760) repeats the functions of a master CFP Standard or CFP AlarmSense 2-8 zone fire panel at remote parts of a site, such as all potential fire service entrances. It gives the user access to all access level 1 and 2 functions.
Key features
- Up to 8 repeaters per CFP master panel
- Own mains power supply with standby battery
- Communicates over screened two-wire fire-resistant cable using CFP761 network driver cards (one supplied with the repeater; one more required in the master panel)
- Flush or surface mountable plastic enclosure, no bezel required
- Not compatible with CFP Economy panels
Technical specifications
-
Part number: CFP760
-
Compatibility: C-TEC CFP Standard and CFP AlarmSense panels
-
Mains supply: 230V 50/60Hz
-
Internal power supply: 19-28.5V (27V nominal)
-
Batteries: 2 x 12V 2.1Ah VRLA for 72 hours standby, or 2 x 12V 1.2Ah for 24 hours
-
Max. network cable length: 1km
-
Dimensions: 380 x 235 x 96mm (W x H x D)
-
Construction: Plastic lid and base, RAL 7035 textured, IP30
-
Weight: 1.75kg without batteries
-
Operating conditions: -5°C to +40°C, max. 95% RH
