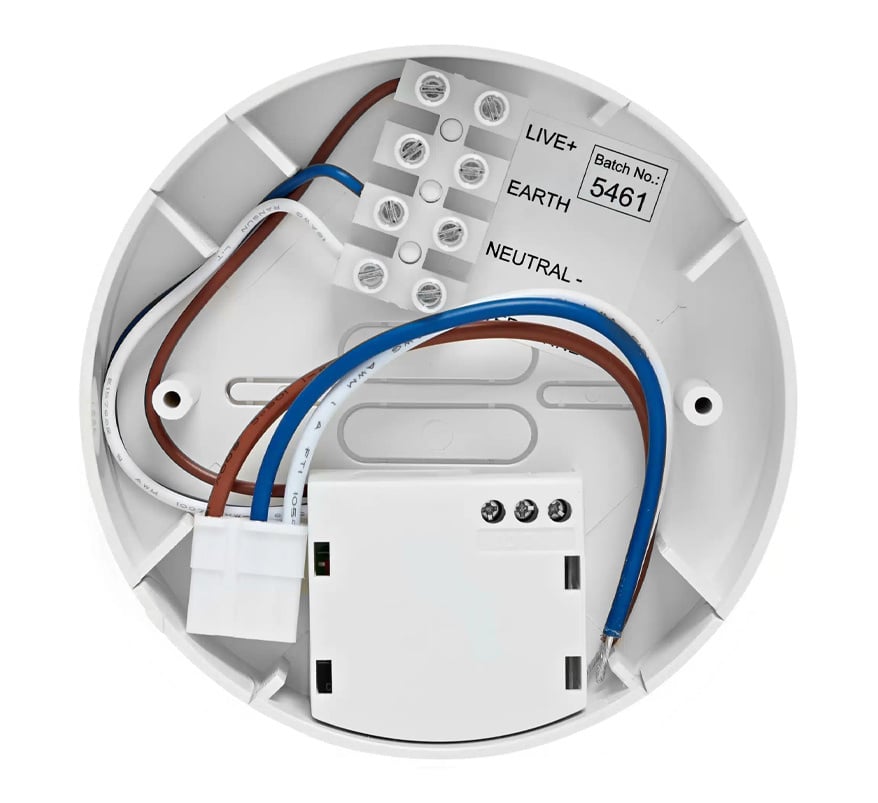

The Hispec HSSA/RB is a mains relay base for Hispec mains-powered smoke, heat and CO alarms. Its volt-free normally open and normally closed relay contacts let an alarm switch auxiliary equipment, such as a separate alarm system, an external sounder or a contactor for an extractor fan.
Key features
- Relay module for any Hispec mains-powered smoke, heat and CO alarm
- Volt-free normally open and normally closed relay contacts
- Used to activate auxiliary devices
- Knock-outs for flexible cable entry
- BESA box mountable
- Robust ABS design
- Supplied with wall plugs and screws
Technical specifications
- Product code: HSSA/RB
- Relay terminals: normally open and normally closed (volt-free)
- Relay switching current: 3A max at 230V AC, 2A max at 24V DC
- Relay max switching voltage (manual): 240V AC, 60V DC
- Guarantee: 5 years
