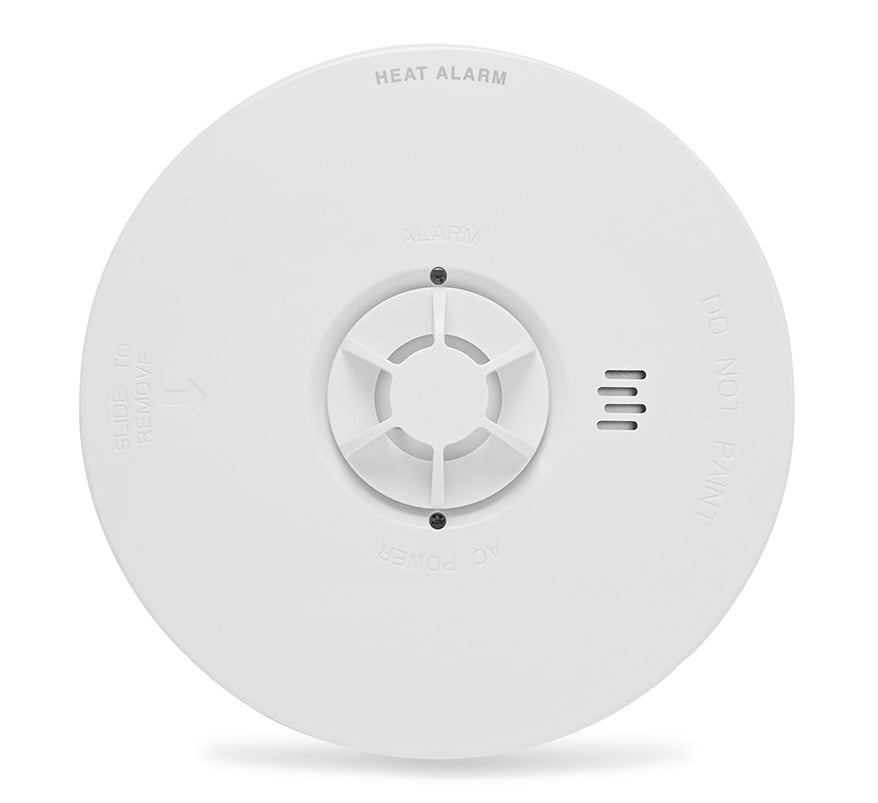

The Hispec PULSE HSSA/HE/10 is a 230V mains-powered heat alarm with a 10-year rechargeable lithium back-up battery, supplied as a full unit. With a fixed 60°C alarm point, it suits kitchens, garages and other areas where a smoke alarm would give nuisance alarms. It can be hard-wire interconnected with up to 20 alarms, and can be made wireless by adding the plug-in Hispec RF PRO module (HSSA/MOD/RF-PRO). Its sensor is tested throughout manufacture and calibrated for fewer false activations.
Key features
- Fixed heat detection (60°C)
- 10-year rechargeable lithium back-up battery
- Hush feature to temporarily silence nuisance alarms
- Loose neutral monitoring
- Loud 85dB alarm
- Tamper-proof design
- Test button and low battery signal
- Compatible with the HSSA/MOD/RF-PRO radio module for wireless interconnection
Technical specifications
- Product code: HSSA/HE/10
- Detection type: fixed heat detection (60°C)
- Power source: 220–240V AC, 50Hz
- Back-up power: lithium battery with 10-year life; 30 days' back-up without mains
- Power consumption: ≤40mA in alarm, ≤10µA standby
- Cable size: 0.75mm² to 1.5mm²
- Maximum interconnected units: 20 hardwired (up to 150m); 20 by RF with the optional module
- Maximum RF distance (with module): 80m open area, 30m enclosed area
- Alarm sound level: 85dB at 3m
- LED indicators: green = mains power; red = battery/fault status
- Operating temperature: 0°C to 40°C
- Operating humidity: 10% to 90%
- Storage: -10°C to 50°C, 0–90% RH non-condensing
- Housing: fire-retardant ABS; rear and side (mini-trunking) cable entry
- Weight (unboxed): 260g (head 175g)
- Grade of alarm: D1
- Approvals: BS 5446-2:2003; designed for installation to BS 5839-6:2019
- Guarantee: 5 years
