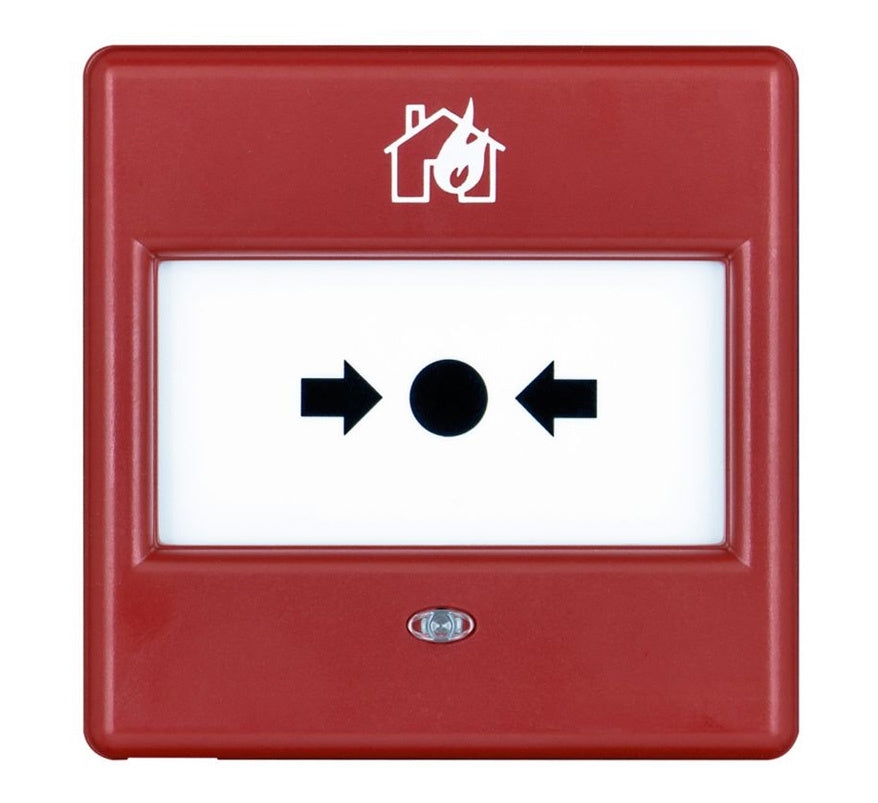

Eaton Fulleon CXL Universal Manual Call Point with LED Indicator - Red (470/680 Ohm) (4920016FULL-0018XC)

The Eaton Fulleon CXL Universal Call Point (CXL/G/P/R/BB/470+680) is a red conventional manual call point with an integral LED indicator and back box. It combines several options in one product to simplify selection and reduce stock: it comes with both a glass and a plastic resettable element, and gives a choice of 470 or 680 ohm alarm resistor connection to suit the fire panel.

Key features

• Conventional call point with LED alarm indicator
• Supplied with both glass and resettable plastic elements
• Choice of 470 Ω or 680 Ω alarm resistor
• Changeover contacts
• Flag on resettable element for quick visual alarm identification
• Supplied with back box

Technical specifications

• Voltage: up to 30 V DC
• Resistors: 470 Ω / 680 Ω
• Element type: glass or plastic (resettable)
• Operating temperature: -10°C to +55°C
• Ingress protection: IP24D
• Construction: ABS, red
• Front dimensions: 87 x 87 mm
• Weight: 0.19 kg
