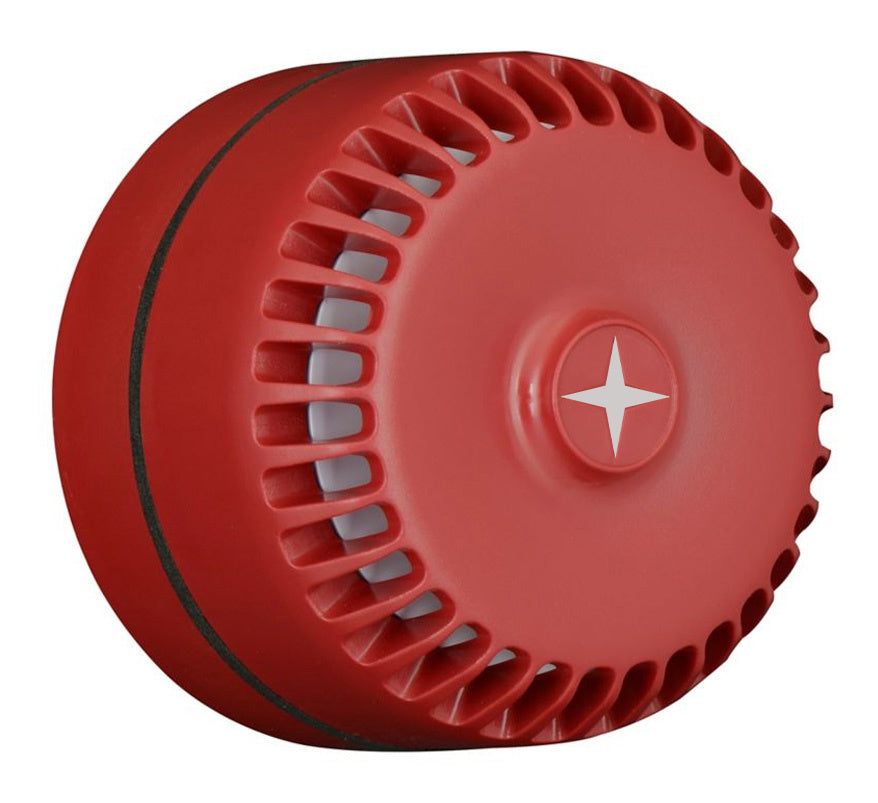

The Eaton Fulleon RoLP Maxi ROLPX/SV/R/S is a higher output version of the market-leading RoLP (Roshni Low Profile) conventional sounder, with a red body and a shallow base. New technology allows six key alarm tones to reach 106dB(A), giving a more powerful fire sounder for better recognition in louder environments.
It has 32 user-selectable tones, including fire-approved and general signalling tones, a two stage alert/alarm function and automatic synchronisation, and is ideal for areas with high ambient noise.
Key features
- 106dB(A) sound output (typical, tone 3)
- 32 user-selectable tones
- Two stage alarm (alert and alarm)
- Automatic synchronisation
- 10dB volume control
- Reverse polarity monitoring
- Certified to EN 54-3
Technical specifications
-
Reference: ROLPX/SV/R/S
-
Catalogue number: 540527FULL-0396X
-
Voltage: 9-15V DC or 18-28V DC
-
Current: 40mA (typical, tone 3)
-
Sound output: 106dB(A) (typical, tone 3)
-
Tones: 32
-
Volume control: 10dB
-
Operating temperature: -25°C to +70°C
-
Ingress protection: IP54
-
Construction: ABS/FR
-
Colour: Red
-
Dimensions: 93mm diameter x 63mm
-
Weight: 0.25kg
