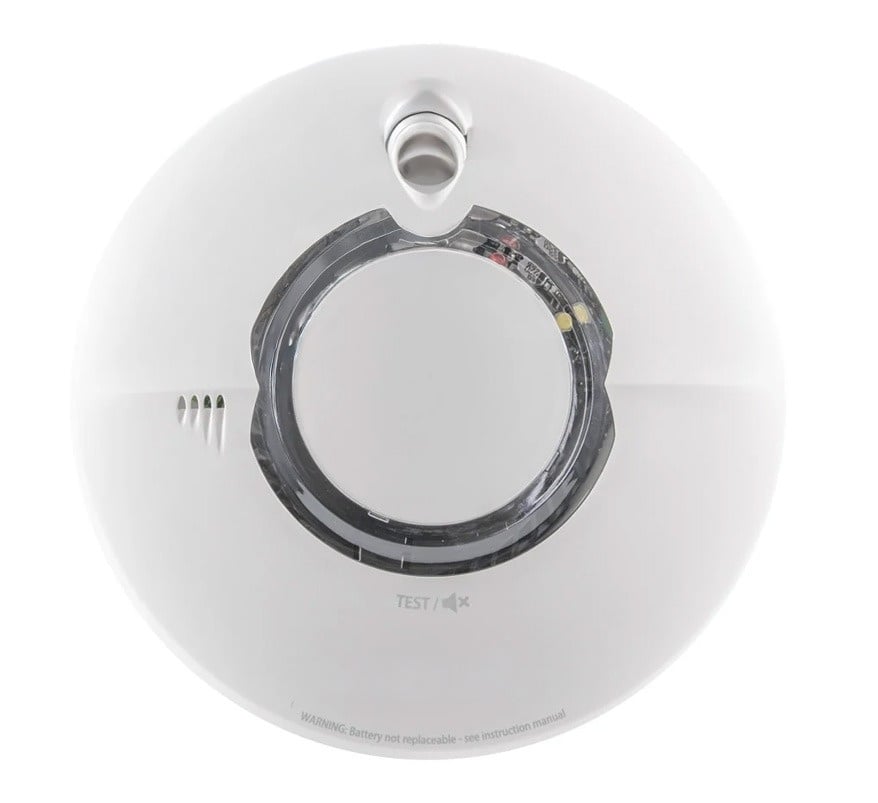

The FireAngel Specification FS2126-T is a battery-powered multi-sensor smoke alarm with a sealed-for-life 10-year Panasonic lithium battery. Its patented Thermoptek technology combines optical smoke sensing with thermal enhancement for rapid detection of all types of fire. It is Grade F1 as per BS 5839-6:2019 and is Smart RF ready: fit a FS1521W2 Smart RF radio module to wirelessly interlink with up to 50 FireAngel Smart RF products and connect directly to the FireAngel Connect Gateway for diagnostics and real-time notifications.
Key features
- Thermoptek multi-sensor optical sensing
- Sealed-for-life 10-year Panasonic lithium battery
- Smart RF ready with the FS1521W2 module (up to 50 Smart RF devices)
- With the module, connects to the FireAngel Connect Gateway for enhanced diagnostics, real-time notifications and remote reporting of buzzer status
- Intelligent status monitoring without an intrusive standby LED
- Central button for Test / Smart Silence / Locate
- Smart Silence silences a known false alarm for up to 10 minutes; the alarm will sound if further smoke is detected
- Supplied with a dust cap to protect the alarm during building work
Technical specifications
- Model: FS2126-T
- Sensor type: Thermoptek multi-sensor optical
- Supply voltage: 3V DC
- Battery: 10-year sealed-for-life Panasonic lithium
- Alarm sound level: 85dB(A) at 3m minimum
- Operating frequency (with Smart RF module): 868MHz
- Installation positions: wall or ceiling
- Dimensions: 132mm diameter x 40.5mm depth
- Weight: 150g
- Operating temperature: +4°C to +38°C
- Operating humidity: up to 90% RH, non-condensing
- Storage: -20°C to +60°C, up to 93% RH non-condensing
- For use in: hallway, landing, living room, bedroom and dining room
- Grade F1 as per BS 5839-6:2019
- Certified to EN 14604:2005+AC:2008
- Warranty: 5 years
