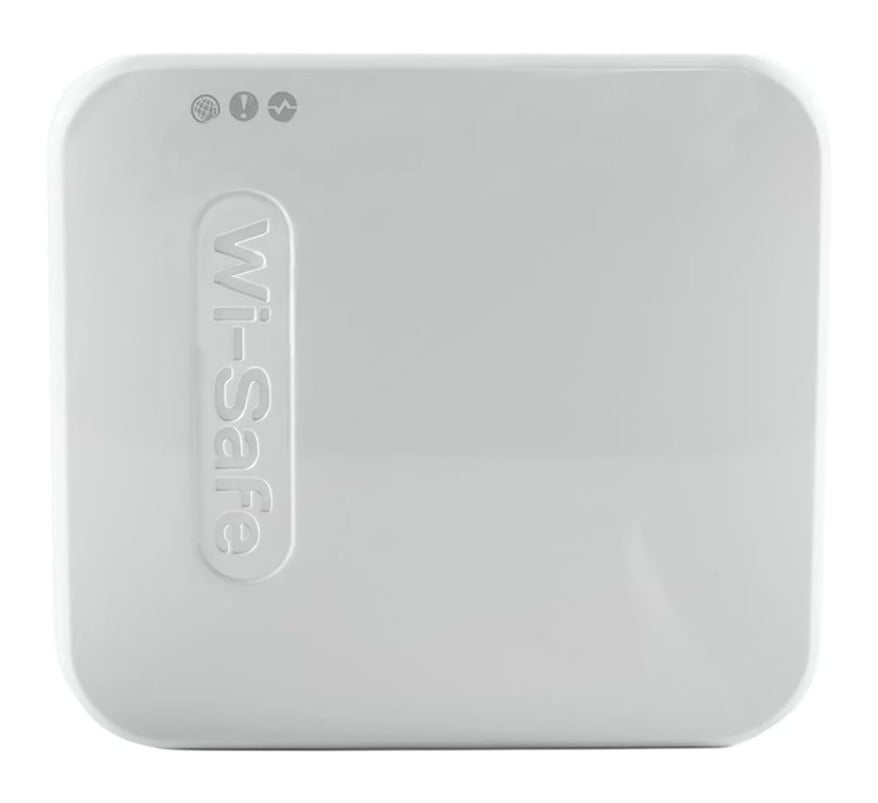

The FireAngel FS1580W2-T (model WG-2) is a Specification Connected wireless gateway that links a FireAngel Smart RF (Wi-Safe 2) alarm network to the internet. Connected to the router by Ethernet, it enables remote, real-time monitoring and management of smoke, heat and CO alarms through the FireAngel Connected platform, without requiring access to the property. The local Smart RF alarm network continues to operate on its own if the internet connection is lost.
Key features
- Remote, real-time monitoring of FireAngel Specification devices via the secure FireAngel Cloud
- Works with a network of up to 50 mains and battery FireAngel Specification Smart RF / Wi-Safe 2 devices
- Test and silence alarm networks remotely using the free FireAngel Connected app (iOS and Android)
- Optional device status notifications give instant access to device diagnostic information
- FireAngel Predict® technology analyses device data to highlight high fire risk
- Access can be granted quickly to service and maintenance teams, family or friends
- LED indicators for power, network connection and fault
- Free-standing or wall mounted; supplied with an Ethernet cable to connect to the router
Technical specifications
- Technology: Smart RF / Wi-Safe 2 / FireAngel Predict®
- Power supply: 5 V DC, 1 A via the enclosed mains adaptor (input 100–240 V AC, 50/60 Hz)
- Peak current consumption: 180 mA
- Data upload: Ethernet
- Maximum connected units: 50 Smart RF or Wi-Safe 2 devices
- Operating frequency: 868 MHz
- Radio range: 35 m (over 200 m in clear air)
- Dimensions: 96 x 87 x 23 mm
- Weight: 85 g
- Storage and transport temperature: 0°C to +35°C
- Independently tested to EN 300 220-2, EN 301 489-3 and EN 301 489-1
- Warranty: 5 years
