Turn a FireAngel Specification alarm into a wireless interlinked smoke alarm with the FS1521W2-T Smart RF module. Once fitted, interlinked alarms all sound together, with no extra wiring.

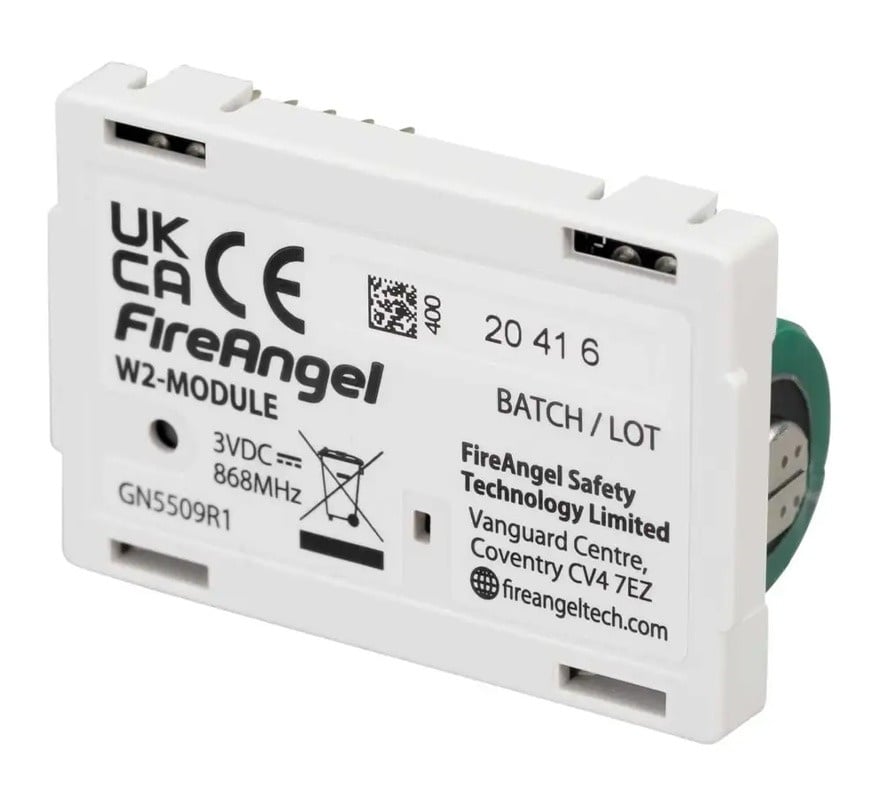

The FireAngel Specification FS1521W2-T is a Smart RF radio module that fits into Smart RF-ready FireAngel Specification alarms to create a wireless network. Once fitted, up to 50 FireAngel Smart RF products, including the FireAngel Connect Gateway, can be wirelessly interlinked on a single network, so when one alarm sounds they all sound. It needs no additional wiring and has its own 10-year sealed lithium battery. Hybrid networks of wireless and hardwired alarms are also supported.
Key features
- For use with all Smart RF-ready Specification devices
- Wirelessly interlink up to 50 Smart RF devices on a single network
- Transceiver in every module for sending and receiving data across the network
- Compatible with FireAngel Connected via the FireAngel Gateway
- 10-year sealed-for-life lithium battery
- Quick and simple to fit into the alarm
Technical specifications
- Model: FS1521W2-T
- Technology: Smart RF
- Supply voltage: 3V DC
- Battery: 3V 10-year sealed-for-life lithium
- Radio frequency band: 868.3MHz
- Range: 35m (over 200m in clear air)
- Maximum connected units: 50 Smart RF devices
- Dimensions: 29 x 55 x 30mm
- Weight: 24g
- Independently tested to ETSI EN 300 220-2 V2.4.1, ETSI EN 301 489-1 V1.9.2 and ETSI EN 301 489-3 V1.6.1
- Warranty: 5 years
Compatible with / Used for: Smart RF-ready FireAngel Specification smoke, heat and CO alarms and the FireAngel Connect Gateway. Add the FS1524W2-T alarm control unit to test, silence and locate alarms from one point.
Frequently Asked Questions
How many alarms can be interlinked?
Up to 50 FireAngel Smart RF products, including the FireAngel Connect Gateway, on a single network.
Does the module need its own battery?
It has its own 10-year sealed-for-life 3V lithium battery.
What is the radio range?
35m (over 200m in clear air), on the 868.3MHz band.
