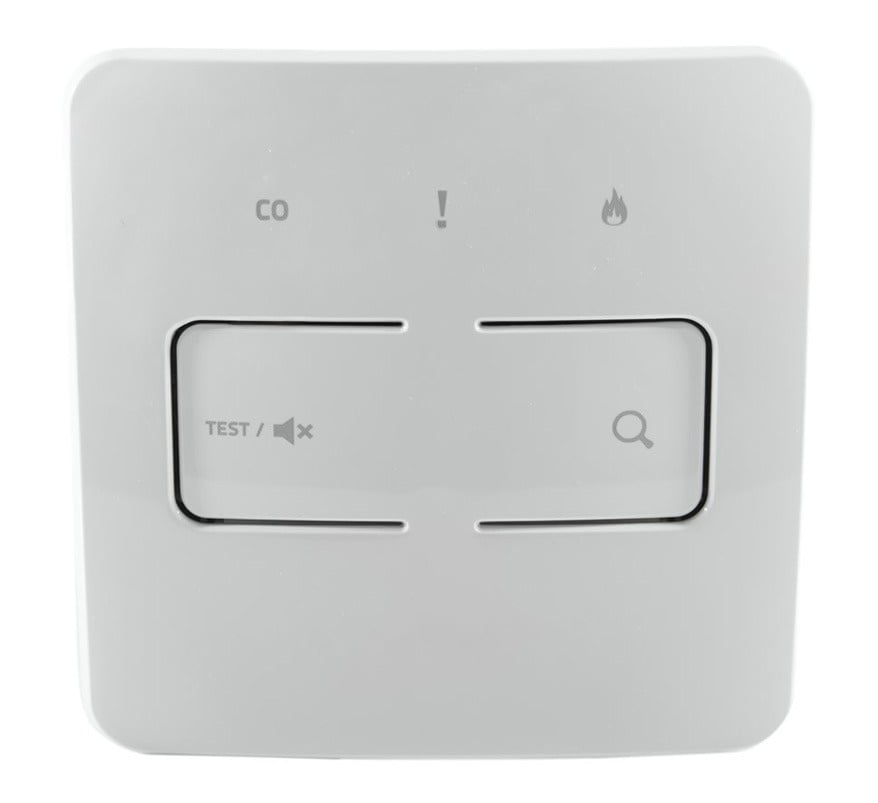

The FireAngel FS1524W2-T is a battery-powered wireless smoke alarm controller that lets residents test, silence and locate interlinked FireAngel Specification alarms from one easy-to-reach point.
The FireAngel Specification FS1524W2-T is a battery-powered wireless alarm control unit for FireAngel Smart RF networks. It lets residents test, silence and locate interlinked Specification alarms from one device without having to reach each alarm, which helps elderly or disabled residents and properties with high ceilings. It can be wall mounted or used as a portable unit, and works with the FireAngel Connect Gateway.
Key features
- Smart RF: works with any Smart RF-ready device; remote interface for up to 50 Smart RF devices
- Test function: test all interlinked alarms from one point
- Silence function: silence all interlinked smoke and heat alarms (an alarm cannot be silenced if CO has been detected)
- Locate function: silence all wirelessly interlinked alarms except the initiating alarm
- Separate fire and CO alarm identification
- Memory function: an indicator flashing every 10 seconds shows that a smoke, heat or CO alarm has activated
- Connects to the FireAngel Connect Gateway
- 10-year sealed lithium battery
Technical specifications
- Model: FS1524W2-T
- Technology: Smart RF
- Supply voltage: 3V DC
- Battery: 10-year sealed lithium
- Operating frequency: 868MHz
- Range: 35m (over 200m in clear air)
- Maximum connected units: 50 Smart RF devices
- Installation: wall mounted or portable
- Dimensions: 90mm (W) x 90mm (H) x 22.5mm (D)
- Weight: 142g
- Operating temperature: +4°C to +38°C
- Operating humidity: up to 90% RH, non-condensing
- Storage: -20°C to +60°C, up to 93% RH non-condensing
- Independently tested to ETSI EN 300 220-2 V2.4.1, ETSI EN 301 489-1 V1.9.2 and ETSI EN 301 489-3 V1.6.1
- Warranty: 5 years
Compatible with / Used for: FireAngel Specification Smart RF networks (alarms fitted with the FS1521W2-T Smart RF module) and the FireAngel Connect Gateway. Ideal for elderly or disabled residents and high ceilings.
Frequently Asked Questions
What can the FS1524W2-T do?
Test all interlinked alarms from one point, silence interlinked smoke and heat alarms, and locate the initiating alarm by silencing all others.
Can it silence a CO alarm?
No. An alarm cannot be silenced if CO has been detected.
How is it powered and mounted?
It has a 10-year sealed lithium battery and can be wall mounted or used as a portable unit.
