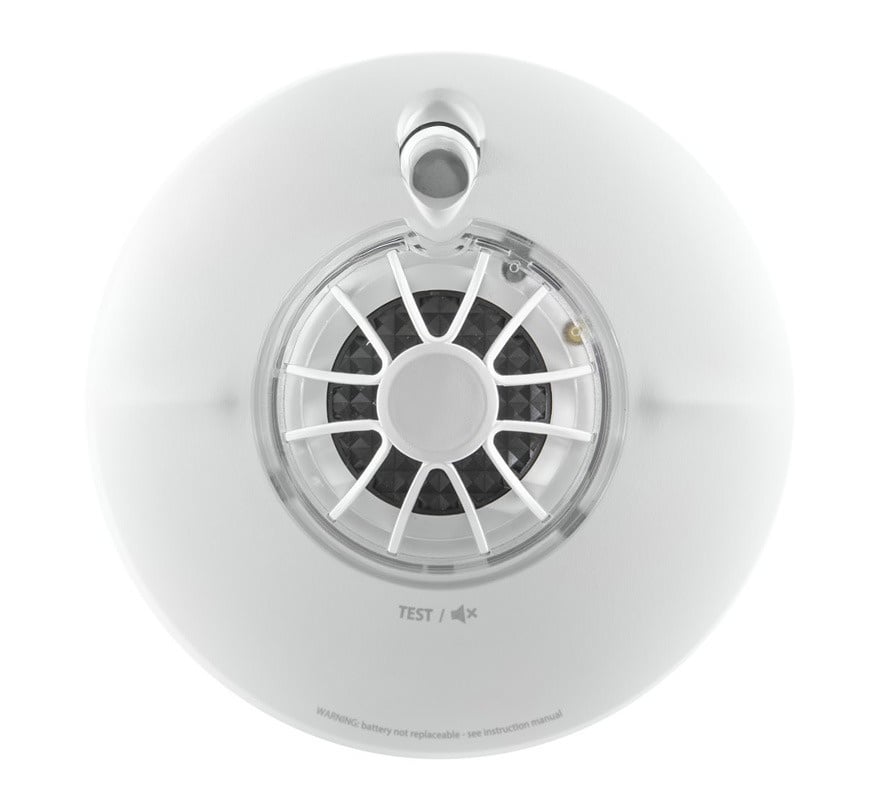

The FireAngel Specification FS1226-T is a battery-powered heat alarm with a sealed-for-life 10-year Panasonic lithium battery. It provides Class A1 heat detection using FireAngel's Thermistek technology, with a patented radiant heat dish, a high-performance thermistor and predictive monitoring for a quicker response to kitchen fires. It is Grade F1 as per BS 5839-6:2019 and is Smart RF ready: fit a FS1521W2 Smart RF radio module to wirelessly interlink with up to 50 FireAngel Smart RF products, including the FireAngel Connect Gateway.
Key features
- Thermistek heat sensing with a radiant heat dish
- Enhanced thermal sensor predicts when the temperature will rise to a dangerous level
- Sealed-for-life 10-year Panasonic lithium battery
- Smart RF ready with the FS1521W2 module; connects to the FireAngel Connect Gateway for diagnostics and real-time notifications
- Central button for Test / Smart Silence / Locate
- Silence function for known false alarms
- Suitable for protecting the kitchen
- Supplied with a dust cap to protect the alarm during building work
Technical specifications
- Model: FS1226-T
- Sensor type: Thermistek
- Heat detection: Class A1
- Supply voltage: 3V DC
- Battery: 10-year sealed-for-life Panasonic lithium
- Alarm sound level: 85dB(A) at 3m minimum
- Operating frequency (with Smart RF module): 868MHz
- Installation position: ceiling
- Dimensions: 132mm diameter x 60mm depth
- Weight: 143g
- Operating temperature: +4°C to +38°C
- Operating humidity: up to 90% RH, non-condensing
- Storage: -20°C to +60°C, up to 93% RH non-condensing
- For use in: kitchen, garage and loft
- Grade F1 as per BS 5839-6:2019
- Certified to BS 5446-2:2003
- Warranty: 5 years
