The HAES Esento Marine 12 Way Repeater (ESEN-R-12MAR) is a 12 zone fire alarm repeater panel that can operate as a fully functional or passive repeater. It is suitable for the Esento Marine conventional panel range (not suitable for the 2 or 4 zone Marine panels). It is available in grey or black; the black version is ESEN-R-12MAR-B.
It shows zonal fire and fault indications at a second location and, when fully functional, gives access to panel controls by key switch or code entry.
Key features
- 12 zonal fire and fault indications
- Fully functional or passive operation
- Controls activated by key switch or code entry
- 1.25A switch mode power supply, nominal 27V DC
- Class change and alert inputs
- 6 programmable switched -ve outputs
- Test mode with or without sounders; disable zones, sounder outputs, aux outputs and delays
Technical specifications
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Cable entry: 20mm knockouts in the top and rear of the cabinet
- Dimensions: back box 300mm W x 250mm H x 80mm D; lid 308mm W x 260mm H x 23mm D
- Mains supply: 1.25A internal switch mode PSU, nominal 27V DC
- Battery capacity: 2 x 3.2Ah 12V VRSLA

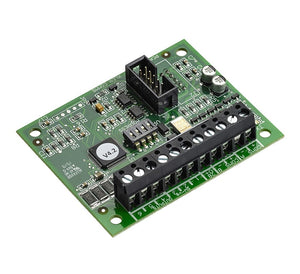

- Outputs: 6 x programmable switched -ve (on network card)
- Switch inputs: class change and alert (pulsing)
- Communication wiring: fault tolerant wiring needs 4-core (min 1.5mm) fireproof cable; legacy radial wiring needs 2-core (min 1.5mm) fireproof cable
