The FireAngel RF-BW-T is a radio interlink base that wirelessly links FireAngel mains push-fit smoke, heat and CO alarms, so there is no interconnect cable to run between alarms.

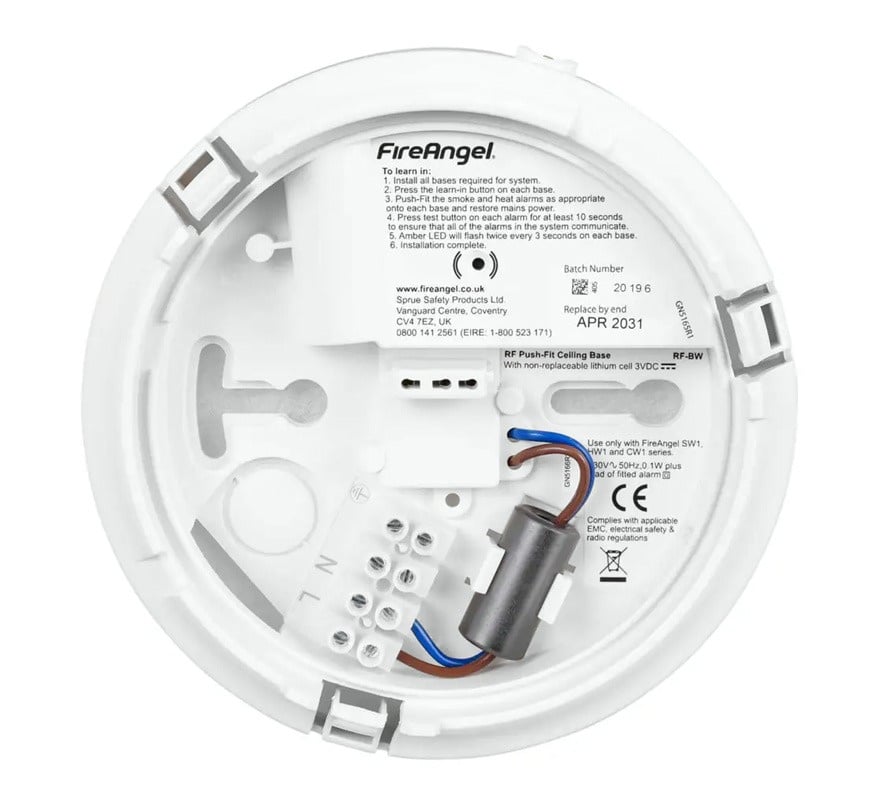

The FireAngel RF-BW-T is a ceiling base with built-in wireless interlink for FireAngel's mains 9V push-fit range. Fitted in place of the standard base, it lets SW1-PF-T smoke, HW1-PF-T heat and CW1-PF-T carbon monoxide alarms communicate by radio, so when one alarm sounds they all sound, with no interconnect wiring between alarms. It is ideal when refurbishing or extending an existing property. One base is required per alarm. Note that the RF-BW-T does not interlink with FireAngel Specification Smart RF products.
Key features
- Wireless interlink between mains-powered SW1-PF-T, HW1-PF-T and CW1-PF-T alarms
- 10-year lithium battery
- RF transmitter and receiver in each base unit
- Multiple repeater RF signalling
- Automatic ID coding
- Push-Fit docking base system: just click the alarm in place
Technical specifications
- Model: RF-BW-T
- Battery: 10-year lithium
- Operating frequency: 868MHz
- Installation position: ceiling
- Dimensions: 139.6mm diameter x 38.9mm depth
- Weight: 145g
- Operating temperature: +4°C to +38°C
- Operating humidity: up to 90% RH, non-condensing
- Storage: -20°C to +60°C, up to 93% RH non-condensing
- Plastic: ABS, UL94 V0 fire retardant
- Operational life: minimum of 10 years
- Warranty: 5 years
Used for: refurbishments and extensions where hard-wired interlink between mains alarms is impractical.
Frequently Asked Questions
Which alarms fit the RF-BW-T base?
FireAngel's mains 9V push-fit range: SW1-PF-T smoke, HW1-PF-T heat and CW1-PF-T carbon monoxide alarms. One base is required per alarm.
Does it work with FireAngel Specification Smart RF?
No. The RF-BW-T does not interlink with FireAngel Specification Smart RF products.
What powers the radio?
Each base has a 10-year lithium battery and its own RF transmitter and receiver, operating at 868MHz.
