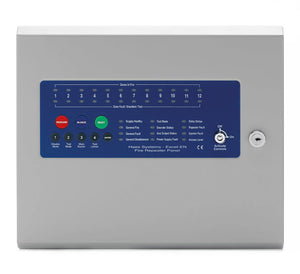

The HAES ASP-R-12 is a 12 zone fire alarm repeater panel for the HAES AlarmSense PLUS panel range. It can operate as a fully functional or passive repeater, showing zonal fire and fault indications at a second location. It is not suitable for AlarmSense (ALS) panels.
The AlarmSense PLUS panel supports up to 8 fully functional repeaters; a comms PCB for the control panel is supplied with each repeater, and the repeater itself already has its comms board fitted.
Key features
- 12 zonal fire and fault indications
- Fully functional or passive operation
- Controls activated by key switch or code entry
- 1.25A switch mode power supply, nominal 27V DC
- Class change and alert inputs
- 6 programmable switched -ve outputs
- Test mode with or without sounders; disable zones, sounder outputs, aux outputs and delays
Technical specifications
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Cable entry: 20mm knockouts in the top and rear of the cabinet
- Dimensions: back box 300mm W x 250mm H x 80mm D; lid 308mm W x 260mm H x 23mm D
- Mains supply: 1.25A internal switch mode PSU, nominal 27V DC
- Battery capacity: 2 x 3.2Ah 12V VRSLA
- Outputs: 6 x programmable switched -ve (on network card)
- Switch inputs: class change and alert (pulsing)
- Communication wiring: fault tolerant wiring needs 4-core (min 1.5mm) fireproof cable; legacy radial wiring needs 2-core (min 1.5mm) fireproof cable
