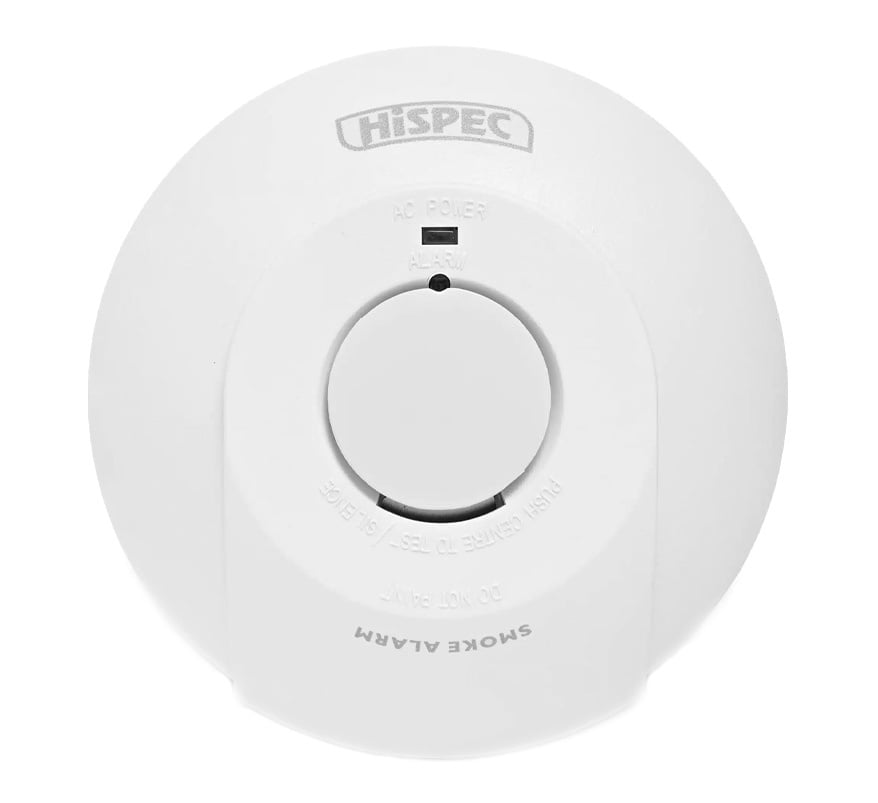

The Hispec HSSA/PE/FF is a 230V mains-powered, hard-wire interconnectable optical (photoelectric) smoke alarm with a 9V back-up battery included. It is supplied with Hispec's Fast Fix base for quick installation and alarm replacement, and can be interconnected with up to 20 wired Hispec detectors so that all alarms sound together.
Key features
- Hard-wire interconnect up to 20 detectors over a maximum of 80m
- 9V back-up battery included
- Fast Fix base included
- Loud 85dB alarm
- Insect-proof design
- Test function and hush feature
Technical specifications
- Product code: HSSA/PE/FF
- Detection type: photoelectric (optical) sensor
- Power source: 220–240V AC
- Battery back-up: 9V battery
- Operating current: <40mA
- Coverage area: 60m² maximum at 2.4m mounting height
- Alarm sound level: 85dB at 3m
- Operating temperature: 0°C to 40°C
- Dimensions: 120 x 120 x 55mm
- Weight: 162g
- Scheme rating: D2
- Approvals: BS EN 14604:2005
- Guarantee: 5 years
