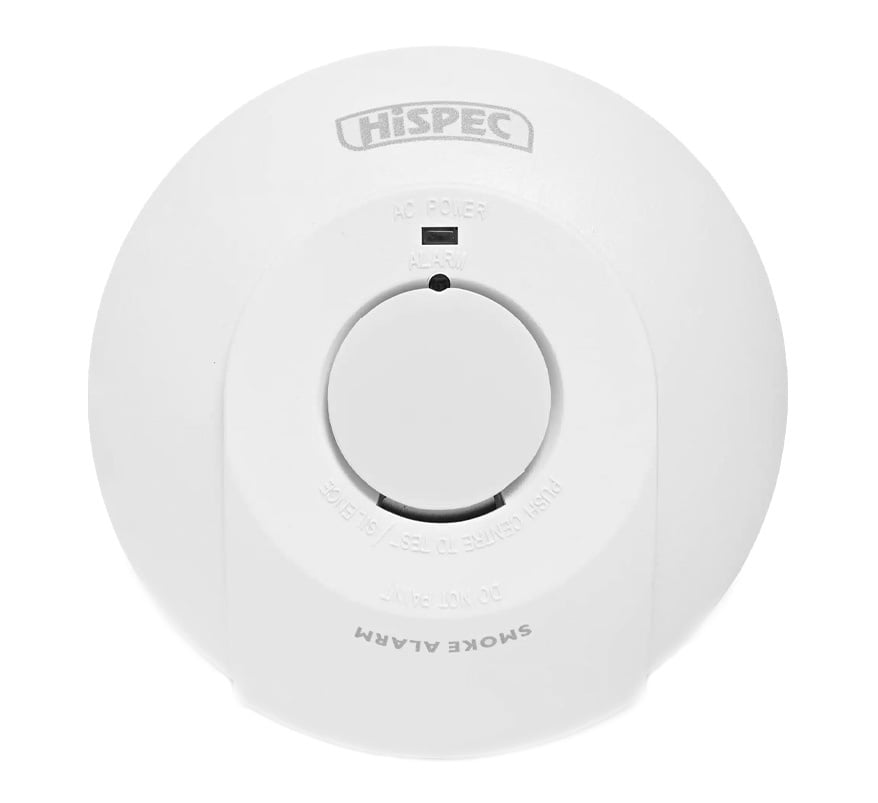

The Hispec HSSA/PE/FF10 is a 230V mains-powered optical (photoelectric) smoke alarm with a 10-year rechargeable lithium back-up battery. It can be hard-wire interconnected with up to 20 compatible Hispec alarms so that all alarms sound when one is triggered, and it is supplied with Hispec's Fast Fix base for quick installation and replacement. It is approved to BS EN 14604:2005 and suitable for Grade D1 systems under BS 5839-6:2019.
Key features
- Hard-wire interconnect up to 20 detectors
- 10-year rechargeable lithium battery back-up
- Optical smoke sensor; contains no radioactive material
- Fast Fix base included
- Loud 85dB alarm
- Test function and hush feature
- Insect-proof and tamper-proof
Technical specifications
- Product code: HSSA/PE/FF10
- Detection type: photoelectric (optical) smoke sensor
- Power source: 220–240V AC, 50–60Hz
- Battery back-up: 3V rechargeable lithium battery, 10-year life
- Operating current: ≤40mA in alarm
- Coverage area: 60m² maximum at 2.4m mounting height
- Alarm sound level: 85dB at 3m
- Operating temperature: 0°C to 40°C
- Humidity: 10% to 90% (non-condensing)
- Weight: 162g
- Scheme rating: D1 (BS 5839-6:2019)
- Approvals: BS EN 14604:2005
- Class II apparatus
- Guarantee: 5 years
