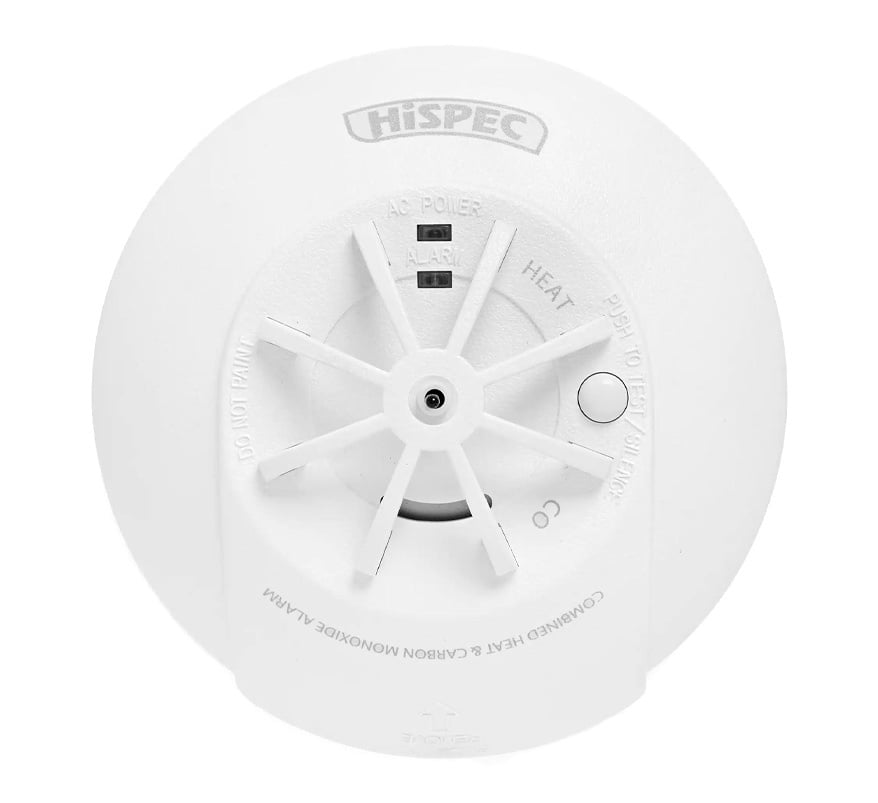

The Hispec HSSA/HCO/FF10 is a 230V mains-powered multi-sensor alarm that combines a fixed 60°C heat sensor with an electrochemical carbon monoxide sensor in a single unit, with a 10-year rechargeable lithium back-up battery. It can be hard-wire interconnected with up to 20 compatible Hispec fire and CO alarms over a maximum of 150m, so all alarms sound when one is activated, and it is supplied with Hispec's Fast Fix base. It suits kitchens and rooms containing fuel-burning appliances.
Key features
- Heat and carbon monoxide detection in one alarm
- Hard-wire interconnect up to 20 devices over 150m
- 10-year rechargeable lithium battery back-up
- Can be used as a Type A CO apparatus when interconnected with Hispec strobes and remote indicators, directly or via a relay base
- Fast Fix base included
- Loud 85dB alarm
- Test function and hush feature; insect-proof and tamper-proof
- A radio-interlink version is also available (HSSA/HCO/RF10-PRO)
Technical specifications
- Product code: HSSA/HCO/FF10
- Detection type: electrochemical CO and fixed heat (Class A1 thermistor, 60°C)
- CO alarm response: 50ppm (60–90 minutes), 100ppm (10–40 minutes), 300ppm (under 3 minutes)
- Power source: 220–240V AC, 50–60Hz
- Battery back-up: 3V rechargeable lithium battery, 10-year life
- Power consumption: ≤40mA in alarm
- Maximum interconnection: 20 units; 150m maximum wired distance
- Alarm sound level: 85dB at 3m
- Operating temperature: 0°C to 40°C
- Humidity: 10% to 90% (non-condensing)
- Weight: 158g
- Scheme rating: D1
- Approvals: BS EN 50291-1:2018, BS 5446-2:2003
- Installation standards: BS EN 50292:2023, BS 5839-6:2019
- Guarantee: 5 years
