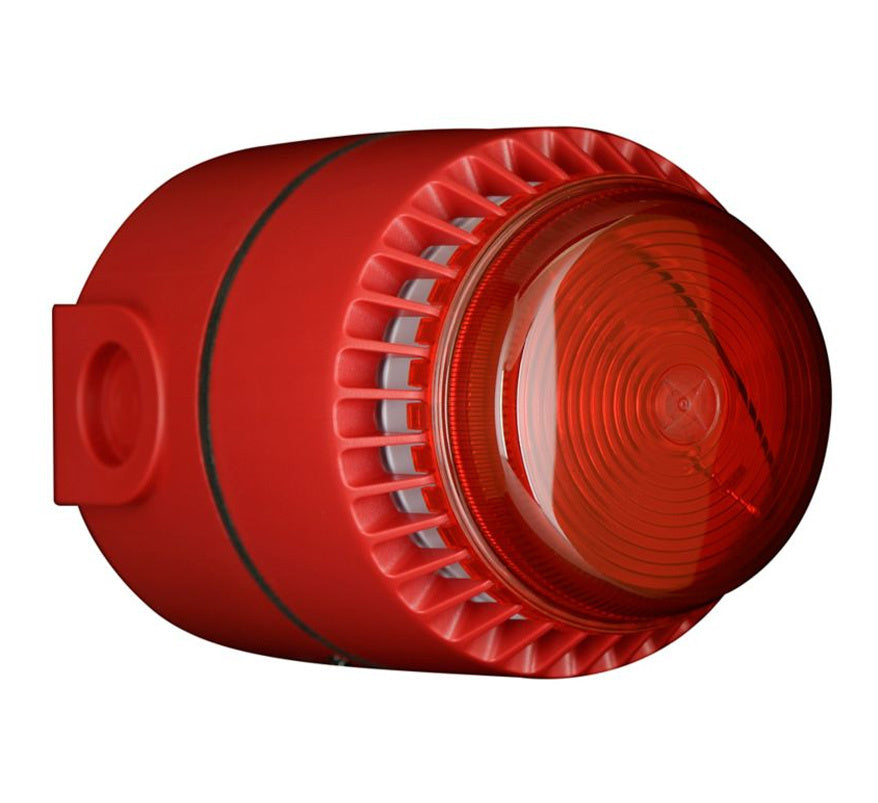

The Eaton Fulleon Flashni FL/RL/R/D is a combined sounder and xenon beacon for 24 V conventional fire alarm sounder circuits, with a red body, red lens and deep base. Because the audible and visual alarm share a single installation point, it reduces installation costs and is less obtrusive than fitting two separate devices. This version has a tone select switch.
Key features
- High output sounder with built-in xenon flash in one unit
- Red body, red lens, deep base (IP65)
- Tone select switch
- Automatic sounder synchronisation for improved tone clarity
- Volume control
- Reverse polarity monitoring
Technical specifications
- Voltage: 18-28 V DC (24 V version)
- Current: 68 mA (typical, tone 3)
- Sound output: 101 dB(A) (typical, tone 3)
- Default tone: pre-set to tone 3
- Volume control: 10 dB
- Flash power: 0.7 J
- Flash rate: 1 Hz
- Monitoring: reverse polarity
- Operating temperature: -10°C to +55°C
- Ingress protection: IP65 (deep base)
- Construction: ABS body, PC lens
- Dimensions: 93 mm diameter; 121 mm high with deep base
- Weight: 0.33 kg
