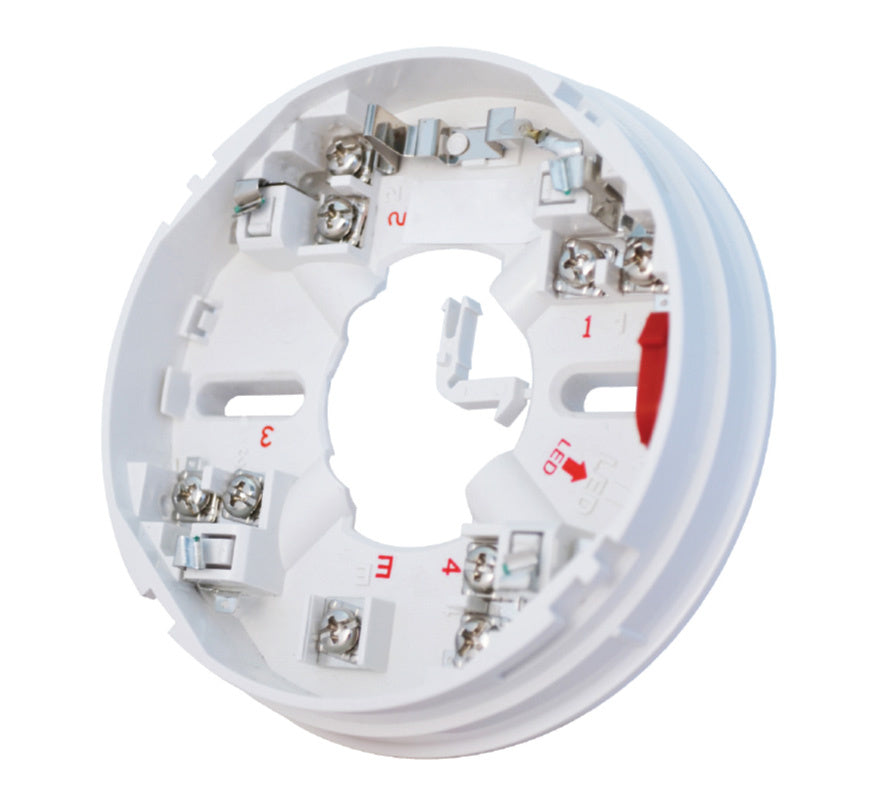

The Eaton Cooper CAB300 is the standard mounting base for Eaton's Cooper intelligent addressable sensors (CAP320 optical, CAPT340 photo-thermal and CAH330 multi-mode heat).
It is designed for quick installation, with separate loop in and loop out terminals and a shorting link that keeps loop wiring continuous if a sensor is removed.
Key features
- Integral sensor shorting link maintains wiring continuity when a sensor is removed
- Separate loop in and loop out terminals; each heavy-duty terminal accepts 2 x 2.5 mm² cables
- Retaining clip gives positive feedback when the sensor is correctly fitted; can be replaced with the locking device supplied to prevent unauthorised removal
- Stand-off fixing feature helps prevent distortion on uneven surfaces
- Large rear cable entry, with breakouts so the base can sit over surface cables
- Fixes to a standard BESA box or directly to a suitable surface
- Remote indicator connection
Technical specifications
- Part number: CAB300 (standard base)
- Compatible sensors: CAP320, CAPT340, CAH330
- Construction: PC/ABS, white
- Dimensions (Dia x D): 104 x 22 mm
- Weight: 0.056 kg
- Ingress protection: IP40
What's in the box
- CAB300 base
- Sensor locking device
