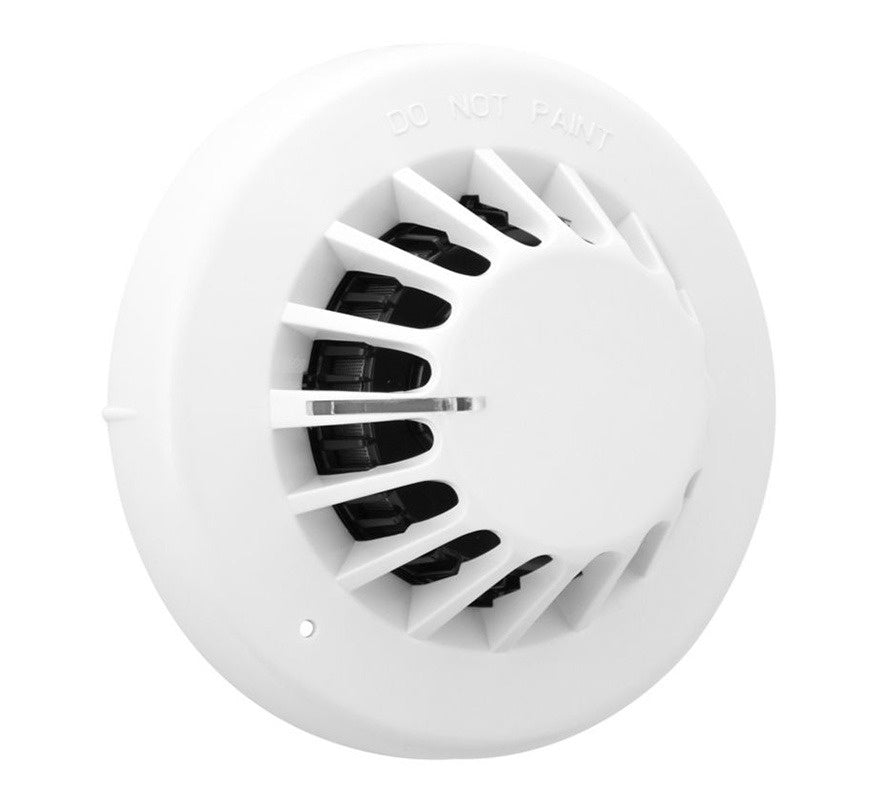

Eaton Cooper Intelligent Addressable Photo-Thermal Multisensor (CAPT340)

The Eaton Cooper CAPT340 is an intelligent addressable photo-thermal sensor for Eaton's Cooper addressable fire systems.

It responds quickly to fast, clean-burning fires while keeping the advantage of an optical sensor for smouldering fires. Thermal enhancement allows a higher alarm threshold for better false-alarm rejection, and the sensor also raises an alarm at temperatures above 60°C.

Key features

• Combined optical smoke and heat sensing
• Day/night modes programmable from the site installer software: day mode uses the heat element for areas that may be smoky during working hours; night mode combines A2S heat and smoke detection. Defaults to dual mode if not programmed
• Soft addressed (auto address) with integral short circuit isolator
• 360° visibility LED using light-pipe technology
• Drift compensation
• Fits the common CAB300 standard base

Technical specifications

• Part number: CAPT340 (Eaton code 400004FIRE-0004X)
• Standards: EN 54-5:2000 + A1:2002; EN 54-7:2000 + A1:2002; EN 54-17
• Operating voltage: 18 to 30 V DC
• Standby current: 220 µA max.
• Alarm current: 5 mA max.
• Static alarm temperature: 60°C
• Area coverage: 100 m² (subject to local standard)
• Mounting: ceiling in open areas, surface mount with CAB300 base
• System wiring: min. 1.5 mm², 2-core loop or spur
• Operating temperature: -10°C to +50°C
• Humidity: 0 to 95% RH (non-condensing)
• Construction: PC/ABS, white (RAL 9003)
• Dimensions: 101 x 43 mm excluding base; 104 x 55 mm including base
• Weight (without base): 76 g
• IP rating: IP30
