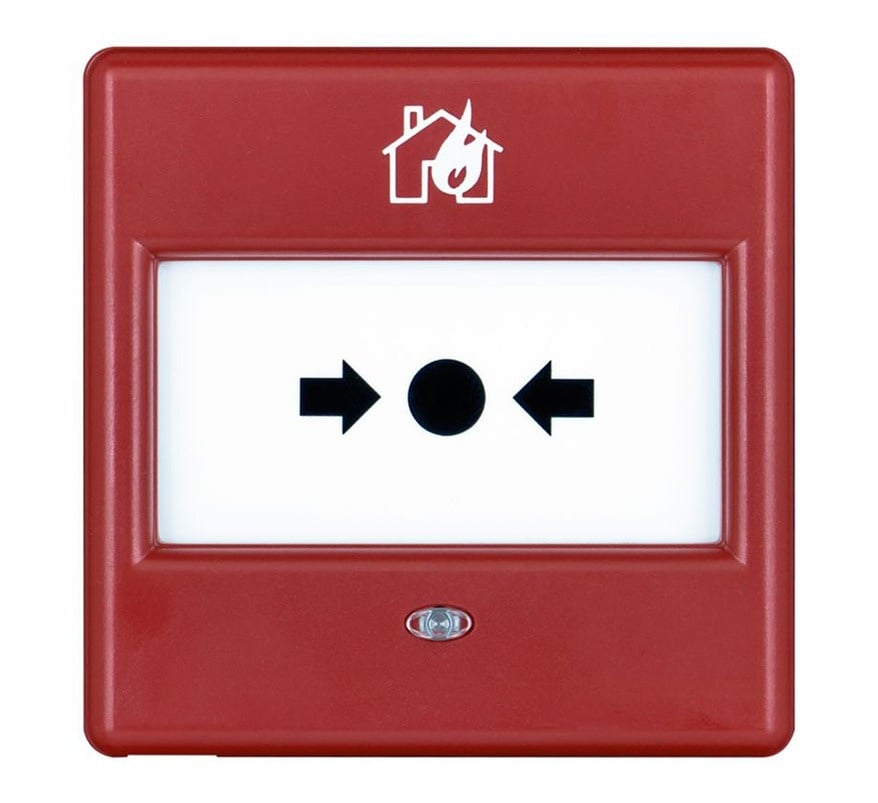

Eaton Cooper Intelligent Addressable Manual Call Point (CBG370S)

The Eaton Cooper CBG370S is an intelligent addressable manual call point for surface or flush mounting use, compatible with Eaton intelligent addressable fire alarm systems. It is certified to EN 54-11 and includes an integral short circuit isolator, so it takes a single loop address with no need for additional isolator modules.

It can be surface or flush mounted and has standard rear BESA fixings; the surface back box accepts top or bottom entry cables. It is supplied as standard with a frangible glass element and a test key; the fast-fit front cover locks in place and can only be removed with the key, which also lets the engineer test the call point without breaking the glass.

Key features

• Soft addressed; single address
• Integral short circuit isolator
• High visibility status LED
• Fast-fit self-locking front cover, removed only with the supplied key
• Dual-function test key for testing and cover removal, inserted at the bottom for easy access beside door frames
• Heavy duty terminals with separate loop in and loop out connections, including screen continuity
• Accessories available: protective hinged cover (CXPC), resettable element kit (MBGREKIT), spare glasses (UBSG) and keys (MFBGKEY3), spacer plates (MBGSP), recessing bezels (MBGBEZ)

Technical specifications

• Catalogue number: CBG370S
• Standards: EN 54-11 (manual call point), EN 54-17 (short circuit isolator)
• Operating voltage: 17V to 32V DC
• Quiescent current: Less than 250µA
• Operating temperature: -10°C to +55°C
• Humidity: 0 to 93% RH, non-condensing
• Construction: PC/ABS, red
• Dimensions (H x W x D): 87 x 87 x 57mm surface mounted (36mm flush)
• Weight: 0.2kg
• Ingress protection: IP42
