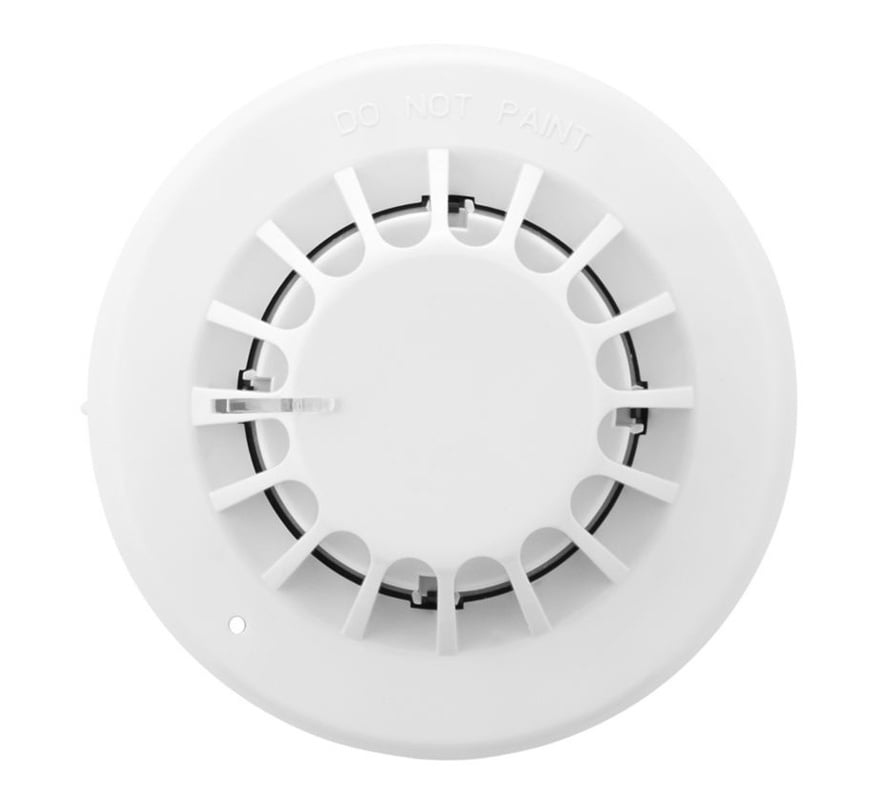

Eaton Cooper Intelligent Addressable Multi-Mode Heat Detector (CAH330)

The Eaton Cooper CAH330 is an intelligent addressable multi-mode heat sensor for Eaton's Cooper addressable fire systems.

It can be set to one of three modes (rate of rise or one of two fixed temperatures) from the panel, and is designed for areas where dust, fumes, steam or smoke under normal conditions could cause false alarms with smoke detection.

Key features

• Three modes in one sensor: rate of rise, fixed 77°C (class BS) and high fixed temperature (class CS)
• Soft addressed (auto address) with integral short circuit isolator
• 360° visibility LED using light-pipe technology
• Drift compensation
• Fits the common CAB300 standard base (also compatible with the CAS380 sounder base)
• Third-party approved to EN 54-5 and EN 54-17

Technical specifications

• Part number: CAH330 (Eaton code 400003FIRE-0003X)
• Standards: EN 54-5:2000 + A1:2002; EN 54-17
• Operating voltage: 18 to 30 V DC
• Standby current: 220 µA max.
• Alarm current: 5 mA max.
• Heat classes: BS (fixed 77°C) and CS (high fixed temperature), plus rate-of-rise mode
• Mounting: ceiling in open areas, surface mount with CAB300 base
• System wiring: min. 1.5 mm², 2-core loop or spur
• Operating temperature: -10°C to +60°C
• Humidity: 0 to 95% RH (non-condensing)
• Construction: PC/ABS, white (RAL 9003)
• Dimensions: 101 x 43 mm excluding base; 104 x 55 mm including base
• Weight (without base): 76 g
• IP rating: IP30
