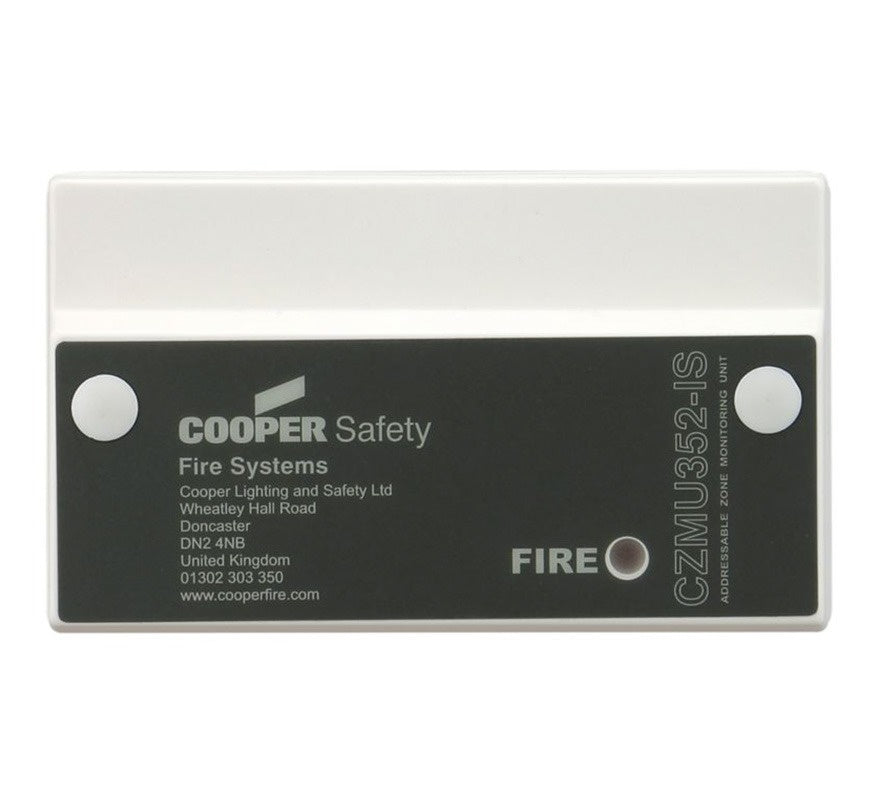

The Eaton Cooper CZMU352-IS is an intrinsically safe zone monitor unit for Eaton intelligent addressable fire systems. Paired with an MTL5561 opto-isolated barrier, it connects a zone of intrinsically safe conventional detectors and a separate zone of intrinsically safe call points to the addressable loop, for use in hazardous areas.
It takes a single address, is soft addressed with no hard addressing required, and includes an integral short circuit isolator. The inputs are monitored for open circuit, short circuit and earth faults.
Key features
- ATEX compliant intrinsically safe interface
- Accepts one zone of up to 10 conventional detectors and one zone of up to 10 call points
- Detector zone for SLR-E-IS optical and DCD-1E-IS heat detectors on the YBN-R/4IS base; call point zone for BG3 I/S call points
- Soft addressed (plug and play); single address
- Integral short circuit isolator
- Inputs monitored for open circuit, short circuit and earth faults
- Approved to EN 54-17 and EN 54-18
Technical specifications
-
Catalogue number: CZMU352-IS
-
Supply voltage: 18.5V to 30V DC
-
Quiescent load current: 2.8mA
-
Load (10 detectors / 10 call points): 3.4mA
-
Alarm load (10 detectors / 10 call points): 8mA
-
End of line: 5k1
-
Fire input trigger resistance: 680 ohm (detector zone), 470 ohm (call point zone)
-
Operating temperature: -10°C to +60°C
-
Humidity: 95% RH, non-condensing
-
Construction: PC/ABS
-
Dimensions (H x W x D): 88 x 147 x 57mm
-
Weight: 0.25kg
-
Ingress protection: IP40
-
Recommended cable: FIRETUF, FP200, MICC
