Eaton Cooper Intelligent Addressable Ceiling VAD (White Flash, Shallow Base) (CAB492CS)

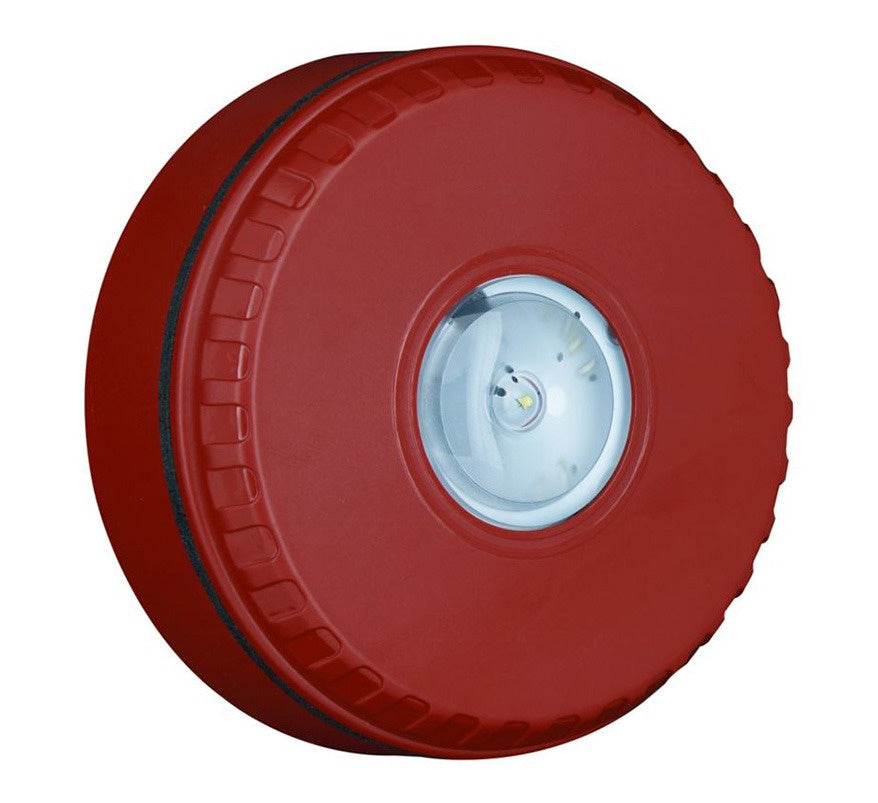

The Eaton Cooper CAB492CS is an intelligent addressable ceiling-mounted visual alarm device (VAD) with a red body and white LED flash, supplied with a shallow base. It is certified to EN 54-23 and provides clear, low-current visual fire warning on Eaton intelligent addressable fire alarm systems.

Its lens spreads light in a cylindrical pattern to reach the illumination required by the standard while keeping current draw low. It is designed in line with CoP 0001 (the UK installation code) for mounting at heights of up to 3 m.

Key features

• Compliant with EN 54-23
• Ultra-low current consumption
• Coverage switch: 7.5 m or 2.5 m
• Flash rate switch from 1 Hz to 0.5 Hz reduces power consumption by up to 50%
• Cylindrical light distribution for ceiling mounting
• Discreet design suitable for public areas

Technical specifications

• Part number: CAB492CS (Eaton catalogue no. 812050FULL-0269X)
• Mounting: ceiling
• Voltage: 19 to 30 V
• Standby current: less than 330 μA
• Operating current: 12.5 to 45 mA (depending on setting and LED colour)
• Mounting height: 3.0 m
• Coverage: 7.5 m (switchable to 2.5 m)
• Coverage volume code: C-3.0-7.5
• Flash rate: 0.5 Hz (switchable to 1 Hz)
• Flash colour: white
• Ingress protection: IP21C (shallow base)
• Operating temperature: −10°C to +55°C (Type A)
• Dimensions (H x W x D): 93 x 93 x 38 mm
