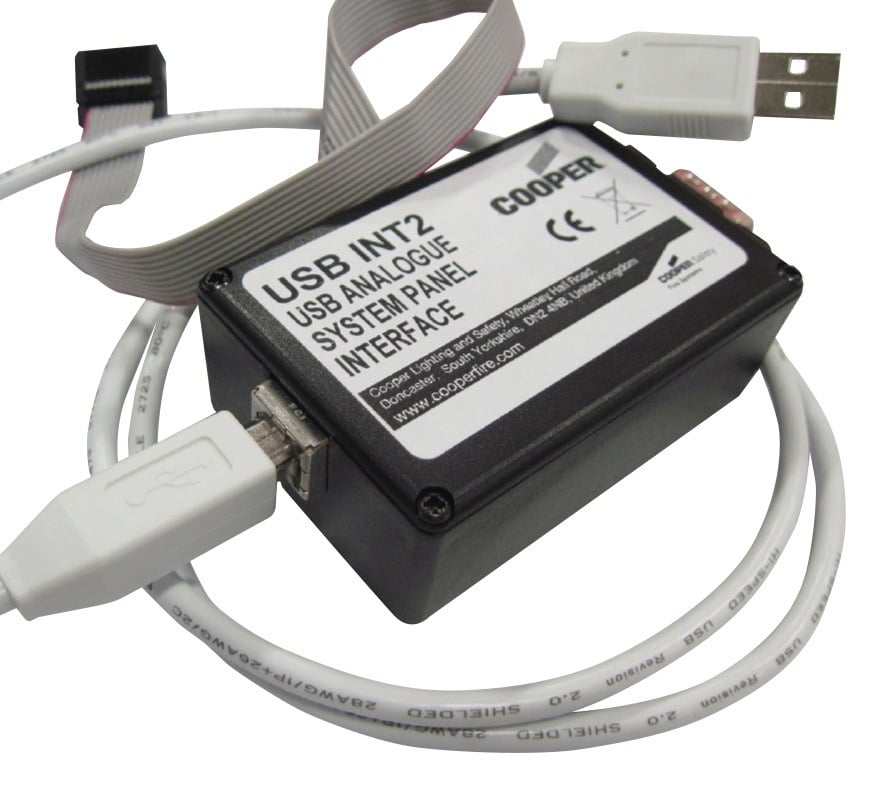

The Eaton Cooper USBINT2 is a USB analogue systems panel interface: a universal serial bus converter that connects a PC to Eaton intelligent addressable control panels, wireless control panels and wireless survey tools.
It converts RS232 to USB, TTL to USB or TTL to RS232, selected with simple DIP switches. It is used to connect the PC site installer software to a panel for programming and configuration, to run wireless live monitoring, and to link a wireless survey tool to the PC survey software.
Key features
- Three modes: RS232 to USB, TTL to USB and TTL to RS232
- Intelligent addressable panel to PC site installer connection (RS232 to USB)
- Wireless panel to PC site installer or live monitor connection
- Wireless survey tool to PC survey tool connection
- Simple DIP switch configuration
- Simple PC driver installation
Technical specifications
-
Catalogue number: USBINT2
-
Conversions: RS232 to USB, TTL to USB, TTL to RS232
-
Dimensions (L x W x H): 28 x 86 x 51mm
-
Weight: 0.239kg
What's in the box
- 1 x USBINT2 interface
- 1 x driver CD-ROM
- 1 x USB cable
- 1 x RS232 cross-over cable
- 1 x TTL cable
