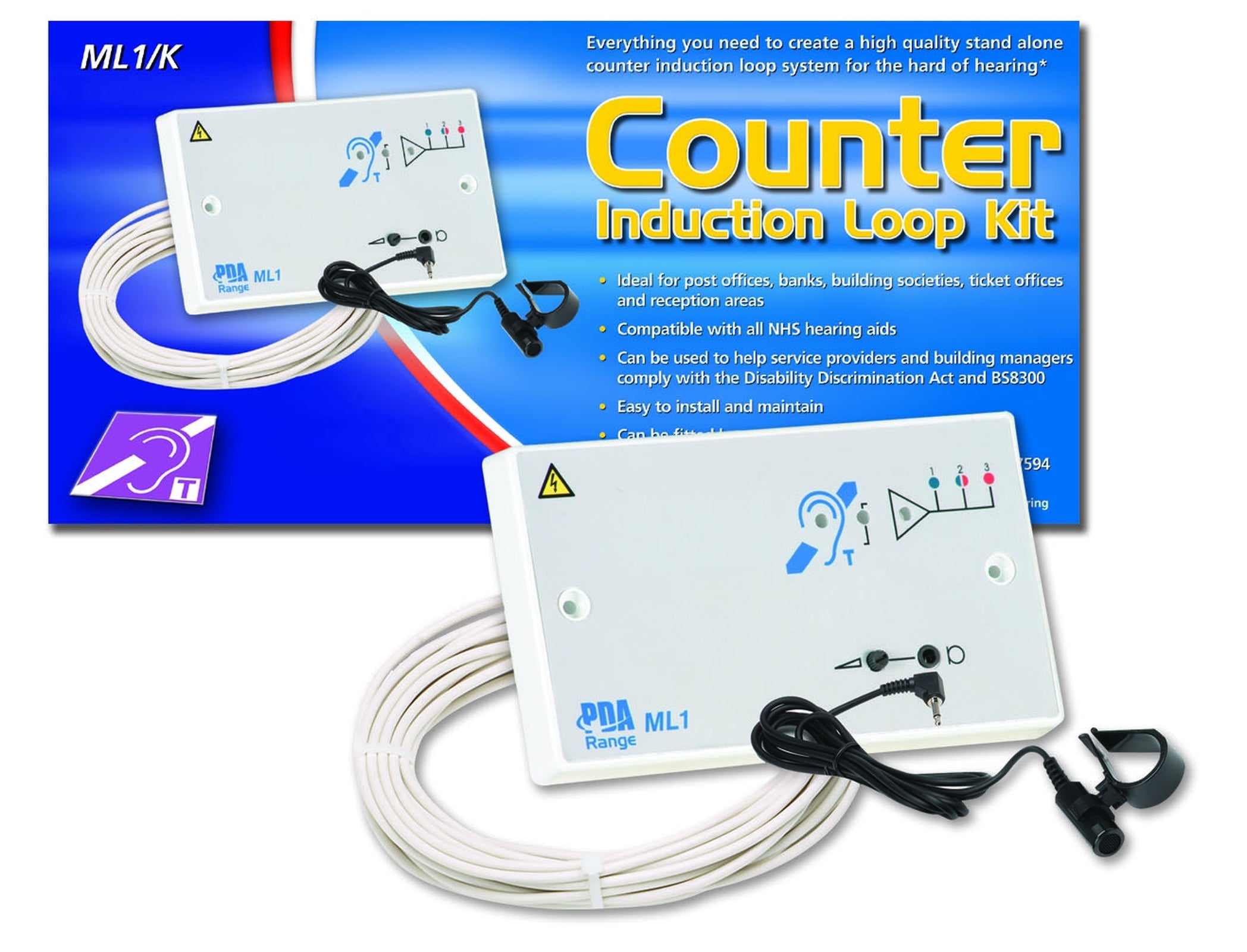

SigNET's new ML1/K counter induction loop kit is ideal for use in post offices, banks, building societies, ticket offices and reception areas. Comprising a compact wall-mounting double gang induction loop amplifier, a self-adhesive microphone and pre-formed counter loop, it can generate a loop listening field of approximately 1.2m2 making it ideal for ticket booths, desktops and tables. In addition to its 3.5mm microphone input, the ML1 amplifier also features a balanced line level input, loop strength, input peak and mains on indicators and a selection of user and engineer adjustable controls. As well as being used as part of the ML1/K counter loop system, the ML1 is capable of covering rooms up to 20m2 (approx. 4.5m x 4.5m) using a loop made from four core burglar alarm cable wired as four turns. Features Extremely cost-effective Generates a loop listening field of approx. 1.2m2 dependent on loop position Double-gang wall-mounting ML1 amplifier fits standard UK 25mm back boxes and is ideal for mounting under desks, counters or table tops Omni-directional AMT microphone plugs directly into 3.5mm socket on amplifier front Balanced/unbalanced line level in and 12V d.c. out connectors offer full compatibility with SigNET's unique outreach plate audio input extension system User-adjustable microphone sensitivity and engineer-adjustable loop drive and input level controls Input Peak, Mains On and Loop Strength indicators Automatic compressor limiter Fully compliant with EN60118-4 (formerly BS6083) and BS7594:1993 Installer-friendly design requires no specialist audio experience or connectors - the ML1 requires fixed mains wiring and can be fitted by any competent electrician
