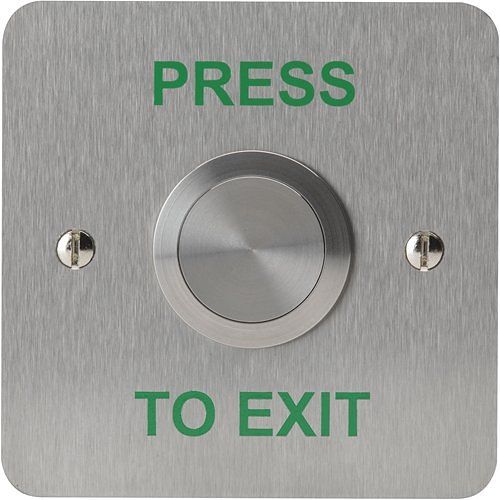

3E 3E0659N-1-PTE Vandal-Resistant Exit Button, Single Gang, SSS, PRESS TO EXIT Text
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 36 | 2 to 3 working days |
- IP67 Protection
- Impact rating - IK07
- 25mm Knurled actuator / excellent tactile feel
Frequently bought together
Product details
The 0659N Vandal resistant exit button is suitable for harsh environments - IK07 shock resistance (DIN EN 50102) and panel sealed to IP67.
Switch body and actuator both manufactured from high quality stainless steel. Low profile of 2.5mm (switch protrusion) increases resistance to attack. Actuator travel of 0.8mm provides excellent, reliable and pleasant tactile feedback on input.
0659 provides a momentary contact and incorporates the highly reliable FK4 ultra-miniature micro-switch, both UL & CSA approved. The microswitch has a long life both mechanically and electrically. The switch has 1 x normally open and 1 x normally closed circuit. Double break switching with snap action ensures switching reliability.
Products are supplied flush mount, complete with screws and galvanised steel electrical box. The product is only available in the 1 gang format.
- IP67 Protection
- Impact rating - IK07
- 25mm Knurled actuator / excellent tactile feel
Specifications
| Contact Type | NO/NC (Combination) |
|---|---|
| Depth | 2.00mm |
| Durability | Shock Resistant; Tamper Resistant; Vandal Resistant |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Double Pole Contact; Flush Mount; Shock Resistance; Surface Mount; Tamper Resistant; Vandal Resistant |
| Gang Type | Single Gang |
| Height | 85.50mm |
| Ingress Protection Rating | IP67 |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 1-Year |
| Material | Stainless Steel |
| Package Contents |
|
| Print/Message | PRESS TO EXIT |
| Product Type | Push Button |
| Width | 85.50mm |
| Maximum Operating Temperature | 85°C |
| Colour | Silver |
| Manufacturer | 3E Security Ltd |
| Minimum Operating Temperature | -25°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
3E 3E0659N-1-PTE Vandal-Resistant Exit Button, Single Gang, SSS, PRESS TO EXIT Text Product datasheet · 3E0659N-1-PTE · PDF Open datasheet
