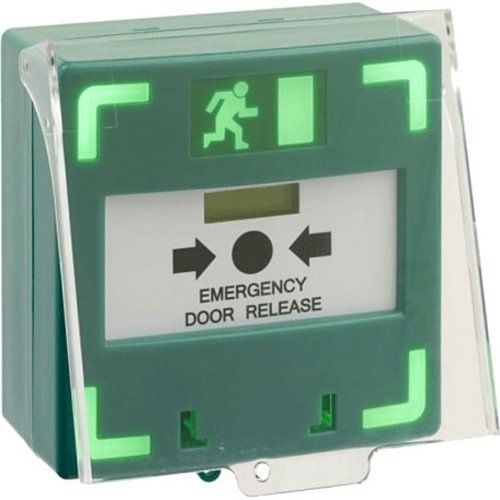

3E 3E0784-TP Manual Call Point Resettable Breakglass for Emergency Use, Buzzer and LEDs, Surface Mount
SKU: 3E0784-TPBrand: 3E Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 26 | 2 to 3 working days |
3E 3E0784-TP Manual Call Point Resettable Breakglass for Emergency Use, Buzzer and LEDs, Surface Mount
£30.35
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Resettable
- Dual-Colour Indication (Red and Green)
- 12/24V DC
- Triple Pole
- c/w buzzer
Frequently bought together
3E Security
3E CP3-LSRC Triple-Pole Resettable Manual Call Point with Cover
Sale price£29.10
In stock
3E Security
3E 3E0501F-1D Door Alarm Hold-Open Magnet with Swivel Armature, Surface Mount, Satin Stainless Steel
Sale price£47.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
3E Security
3E 3E0610-1 Switch Surface Housing, 1-Gang, 38mm Projection, Simulated Satin Stainless Steel
Sale price£8.30
In stockProduct details
The 3E0784-TP is a triple pole resettable breakglass designed for emergency use only. Upon activation of the resettable panel, power is permanently removed to the electronic locking device thus ensuring the door remains unlocked allowing free egress.
The breakglass is equipped with visual and audible indicators ensuring re-assurance once the breakglass has been activated.
The breakglass is supplied with a test key for periodical testing and a protective clear cover to assist with preventing accidental use.
Main Features
- Resettable
- Dual-Colour Indication (Red and Green)
- 12/24V DC
- Triple Pole
- c/w buzzer
Specifications
| Compatibility | 12V dc; 24V dc applications only |
|---|---|
| Contact Type | NO/NC (Combination) |
| Depth | 40.00mm |
| Features | Resettable; Triple pole |
| Height | 85.00mm |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 1-Year |
| Material | ABS |
| Mount Type | Surface Mount |
| Package Contents |
|
| Print/Message | Emergency Door Release |
| Product Type | Manual Call Point |
| Width | 85.00mm |
| Colour | Green |
| Manufacturer | 3E Security Ltd |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
3E 3E0784-TP Manual Call Point Resettable Breakglass for Emergency Use, Buzzer and LEDs, Surface Mount Product datasheet · 3E0784-TP · PDF Open datasheet
