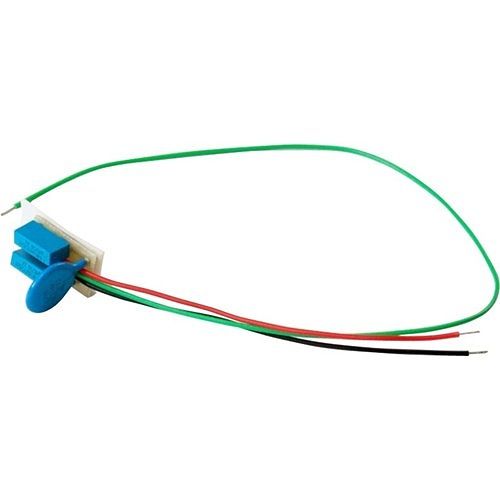

Stop induced AC and nearby lightning from affecting the fire alarm panel with the ACT 1414. Fitted as standard, this 24V spike suppressor will prevent false alarms and system malfunctions by decoupling AC from cables and clamp the supply against spikes.
Main Features
Protects fire alarm system from induced AC and nearby lightning
Decouples induced AC from every alarm cable connected to the control panel
Clamps the 24VDC supply against spikes
Connect RED+ and BLACK- wires across any 24V fire alarm zone, connect GREEN to mains Earth
NOTE: Only one 24V spike suppressor is required for the control panel
Specifications
Environmental Certification
RoHS; WEEE
Environmentally Friendly
Yes
Input Voltage
24V DC
Limited Warranty
1-Year
Output Voltage
24V DC
Product Type
Surge Suppressor/Protector
Colour
Red
Manufacturer
ACT Meters, Ltd
RoHS Compliant
Exempt
WEEE Compliant
Out of Scope
