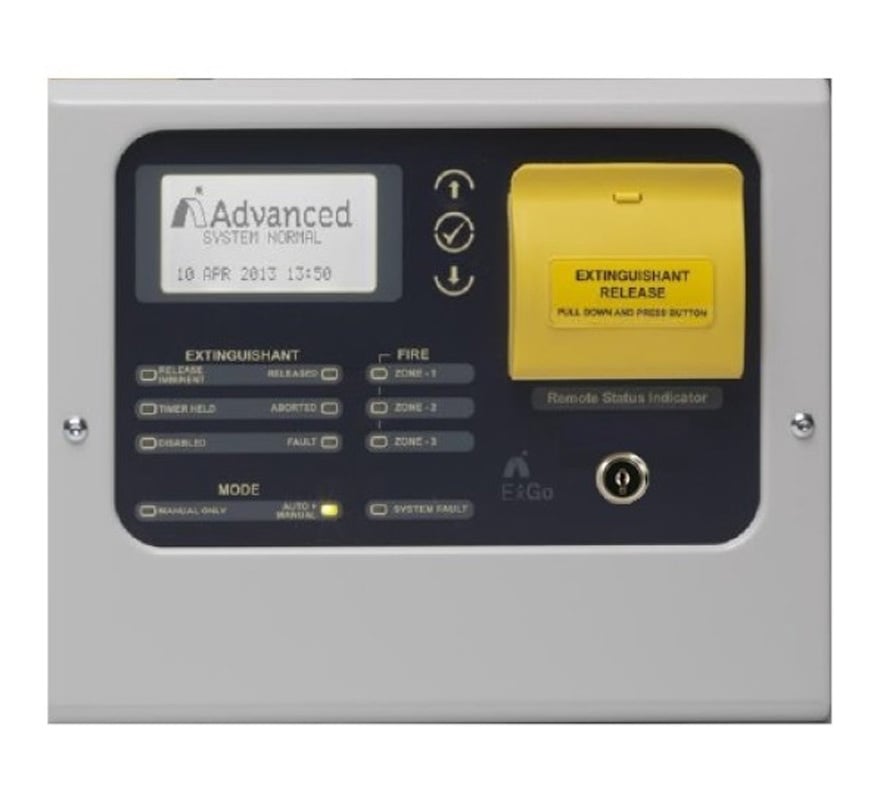

The Advanced EX-3031 is an ExGo Remote Status Indicator with graphic LCD and LED indicators, a manual release (MR) button and a mode select key switch. It is used with the ExGo extinguishing control panel to show system status and allow manual release away from the panel.
ExGo systems detect a fire like a fire alarm system and also control the release of an extinguishing agent, typically protecting high-value areas such as computer suites and telecom switch rooms. Up to 7 remote status indicators can be connected to one ExGo 1-loop panel over RS485.
Key features
- Manual release button
- Mode select key switch (automatic/manual) fitted
- Graphic LCD plus 12 LED indicators
- RS485 network connection to the ExGo panel
- Surface mount, with optional semi-flush bezel (EXM-002)
- 2 programmable monitored inputs
- Optional 2-way relay card (EXP-007F)
- Multiple languages
- 3-year warranty as standard
Technical specifications
-
Part code: EX-3031
-
Enclosure: Steel IP30
-
Dimensions (H x W x D): 190 x 235 x 45mm
-
Environment: Class A indoor, 0°C to 40°C, 95% humidity max
-
Weight: 1.5kg (excluding batteries)
-
Cable entries: 20mm knockouts: 4 x top, 4 x bottom rear
-
Power supply: 24V DC nominal (18-28V)
-
Display: Graphic LCD, 124 x 64 pixels
-
LED indicators: 12: Fire, Release, Timer, Disablement, Mode and Fault
-
External inputs: 2 x programmable, monitored
-
Communications: RS485 to Ex-3000 series control panel
