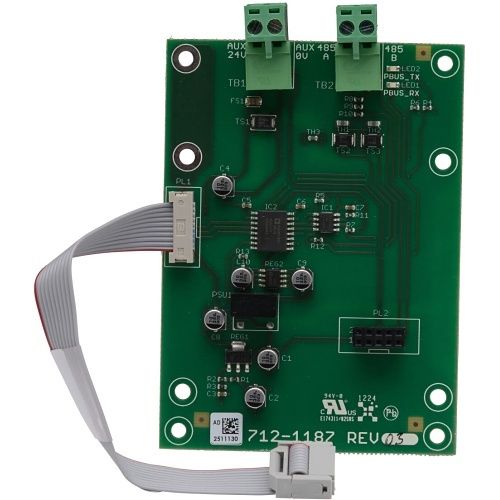

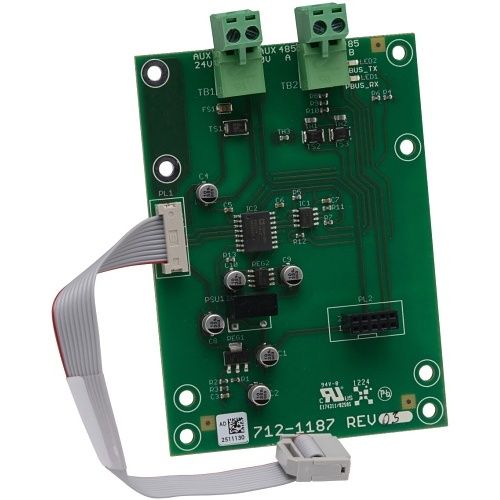

The Advanced GOP-001 is the P-Bus adaptor card for the Advanced Go series (Go1 and Go1+) single-loop fire alarm control panels.
With the adaptor fitted, the Go panel gains a 24V DC 100mA auxiliary output, and together with a routing card it provides three monitored inputs/outputs for fire and fault routing, for full EN 54 compliance when connected to an Alarm Receiving Centre.
Key features
- P-Bus adaptor for Go1 and Go1+ panels
- Enables the Go panel auxiliary output (24V DC, 100mA)
- With a routing card (MXP-532 Routing/Protection Interface), adds 3 monitored inputs/outputs for fire/fault routing
Technical specifications
-
Part code: GOP-001
-
For use with: Advanced Go series single-loop panels (Go1, Go1V, Go1+, Go1V+)
-
Auxiliary output with GOP-001 fitted: 24V DC, 100mA
-
Routing options: MXP-532 Routing/Protection Interface, MXP-506 Routing Termination Card
