Advanced MX-5101V 1-Loop Fire Panel - Small (Argus)

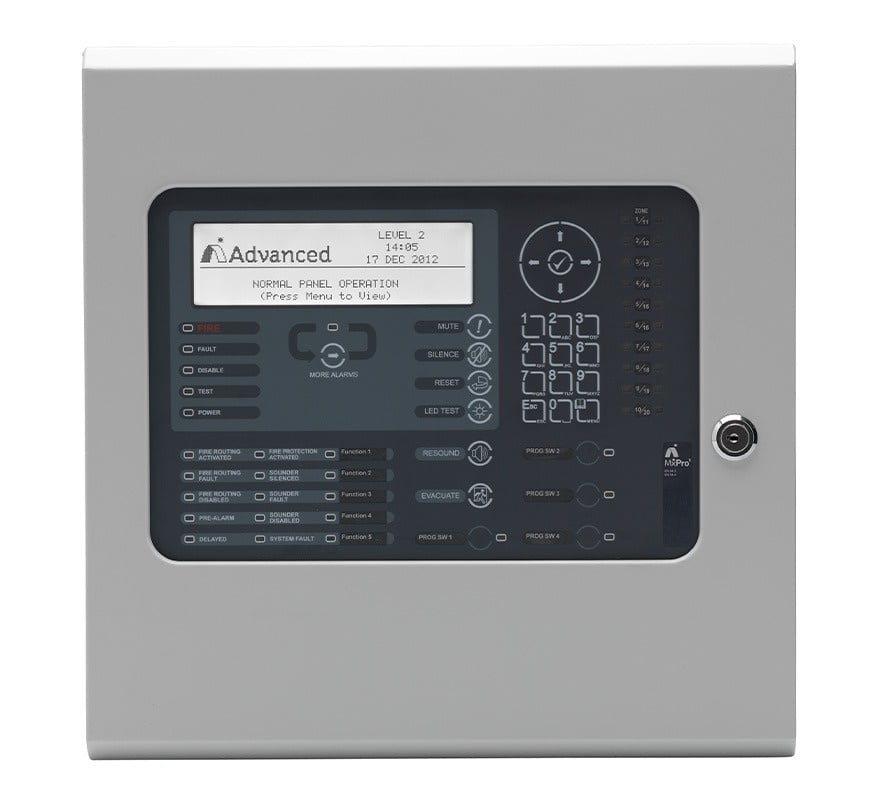

The Advanced MX-5101V is an MxPro 5 series single-loop analogue addressable fire alarm control panel in the standard (small) enclosure, for use with Argus Vega protocol devices. It is supplied with a single loop driver card, two on-board sounder circuits, 20 programmable zonal LEDs and 25 system LEDs.

Powerful cause-and-effect programming, dynamic zoning and enhanced trace diagnostics make it suitable for a wide range of sites, from small buildings to complex multi-area systems.

Key features

• Argus Vega protocol support
• Dual flash-based microprocessors with real-time clock and enhanced trace diagnostics
• White backlit 240 x 64 graphical LCD with tactile alphanumeric keypad
• 20 programmable zonal LEDs with slide-in labels, plus 25 system LEDs
• 4 programmable function buttons with LED confirmation
• Up to 200 fire zones per panel by default, allowing full EN 54 compliance without additional hardware; up to 2,000 zones when networked
• Auto-learn, loop detection and on-board scope facility for easier commissioning and fault finding
• On-board Ethernet for AdvancedLive fire panel monitoring (UK and Ireland only)
• Dedicated USB and RS232 ports; programmable from the keypad or with PC-NeT-022 configuration software
• Integral P-Bus for system expansion with option cards
• Optional network card (MXP-503 standard or MXP-509 fault-tolerant) for peer-to-peer networking in a fault-tolerant loop or radial format
• Robust removable equipment chassis with plug-in connectors
• 3-year warranty

Technical specifications

• Loops: 1
• Protocol: Argus Vega
• Devices per loop: Protocol dependent
• Loop current: 500mA
• Fire zones: 200 per panel, 2,000 networked
• Sounder circuits: 2 x 1A programmable
• On-board relays: 2 x 1A 30V AC/DC programmable (10mA, 5V min), expandable to 4 with MXP-507
• Auxiliary supply: 1 x 24V 500mA
• Inputs: 1 x monitored programmable input; key switch inputs: 1 volt-free input (standard enclosure)
• Total output current: 3A maximum (loop, sounders and auxiliary combined)
• Mains supply: 200-240V AC 50-60Hz (+10% / -15%), 1.0A max
• Charger: 1A, temperature compensated
• Ethernet: 10-Base-T / 100-Base-T (AdvancedLive connectivity, UK and Ireland only)
• Ports: 1 x RS232, 1 x USB B type
• Event log: 5,000 event and diagnostic plus 500 fire
• Enclosure: Steel, IP30, RAL 7035
• Dimensions (H x W x D): 345 x 345 x 85mm
• Cable entries: 13 x top, 8 x rear (20mm knockouts)
• Battery capacity: 24V 4Ah minimum, 24V 7Ah maximum internal (batteries not included)
• Operating temperature: -5°C to 40°C
• Humidity: 95% RH max
• Approvals: EN 54-2, EN 54-4, EN 50130-4, EN 55032, EN 62368-1, EN IEC 63000
