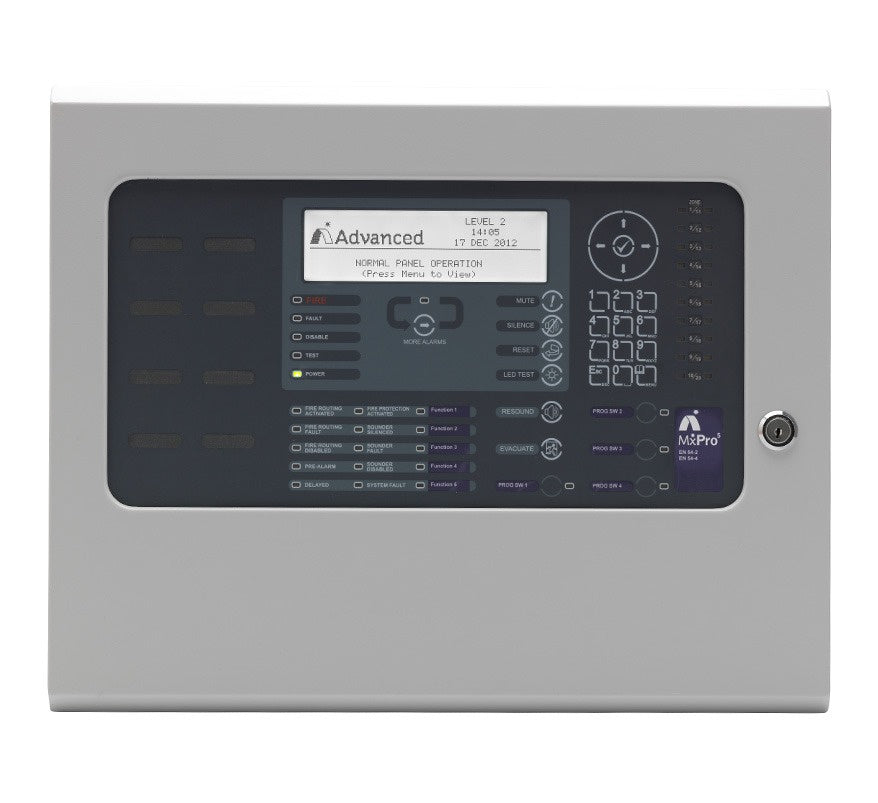

The Advanced MX-5201 is an MxPro 5 series 1-2 loop analogue addressable fire alarm control panel in the standard enclosure, supplied with one loop driver card fitted, for use with Apollo (XP95 / Discovery) and Hochiki ESP protocol devices. Its cause-and-effect programming and trace diagnostics make it suitable for a wide range of sites, from small buildings to large, complex multi-area systems.
The panel can be expanded to two loops by adding a second loop driver card (MXP-568).
Key features
- Apollo (XP95 / Discovery) and Hochiki ESP protocol support
- White backlit 240 x 64 graphical LCD with tactile alphanumeric keypad
- 20 programmable zonal LEDs with slide-in labels, plus system LEDs
- 4 programmable function buttons with LED confirmation
- Up to 200 fire zones per panel by default, allowing full EN 54 compliance without additional hardware; up to 2,000 zones when networked
- Powerful cause-and-effect programming and enhanced trace diagnostics
- Auto-learn, loop detection and on-board scope facility for easier commissioning and fault finding
- On-board Ethernet for AdvancedLive fire panel monitoring (UK and Ireland only)
- Dedicated USB and RS232 ports for direct PC or modem connection; programmable from the keypad or with PC-NeT-022 configuration software
- Integral P-Bus for system expansion with option cards
- Optional network card (MXP-503 standard or MXP-509 fault-tolerant) for peer-to-peer networking in a fault-tolerant loop or radial format
- Display configurable for virtually any language or character set, with installer's logo support
- 3-year warranty
Technical specifications
-
Loops: 1-2 loop panel, one loop driver card fitted
-
Protocol: Apollo XP95 / Discovery and Hochiki ESP
-
Devices per loop: Protocol dependent
-
Loop current: 500mA per loop
-
Fire zones: 200 per panel, 2,000 networked
-
Sounder circuits: 2 x 1A programmable
-
On-board relays: 2 x 1A 30V AC/DC programmable (10mA, 5V min), expandable to 4 with MXP-507
-
Auxiliary supply: 1 x 24V 500mA
-
Inputs: 1 x monitored programmable input; 8 volt-free programmable key switch inputs
-
Total output current: 5A maximum (loops, sounders and auxiliary combined)
-
Mains supply: 200-240V AC 50-60Hz (+10% / -15%), 1.4A max
-
Charger: 2A, temperature compensated
-
Ethernet: 10-Base-T / 100-Base-T (AdvancedLive connectivity, UK and Ireland only)
-
Ports: 1 x RS232, 1 x USB B type
-
Event log: 5,000 event and diagnostic plus 500 fire events
-
Enclosure: Steel, IP30, RAL 7035
-
Dimensions (H x W x D): 345 x 430 x 120mm
-
Cable entries: 13 x top, 8 x rear (20mm knockouts)
-
Battery capacity: 24V 4Ah minimum, 24V 12Ah maximum internal
-
Operating temperature: -5°C to 40°C
-
Humidity: 95% RH max
-
Approvals: EN 54-2, EN 54-4, EN 50130-4, EN 55032, EN 62368-1
