Advanced MX-5201D 1-2 Loop Fire Panel c/w 1 Loop card - Deep (Apo/Hoch)

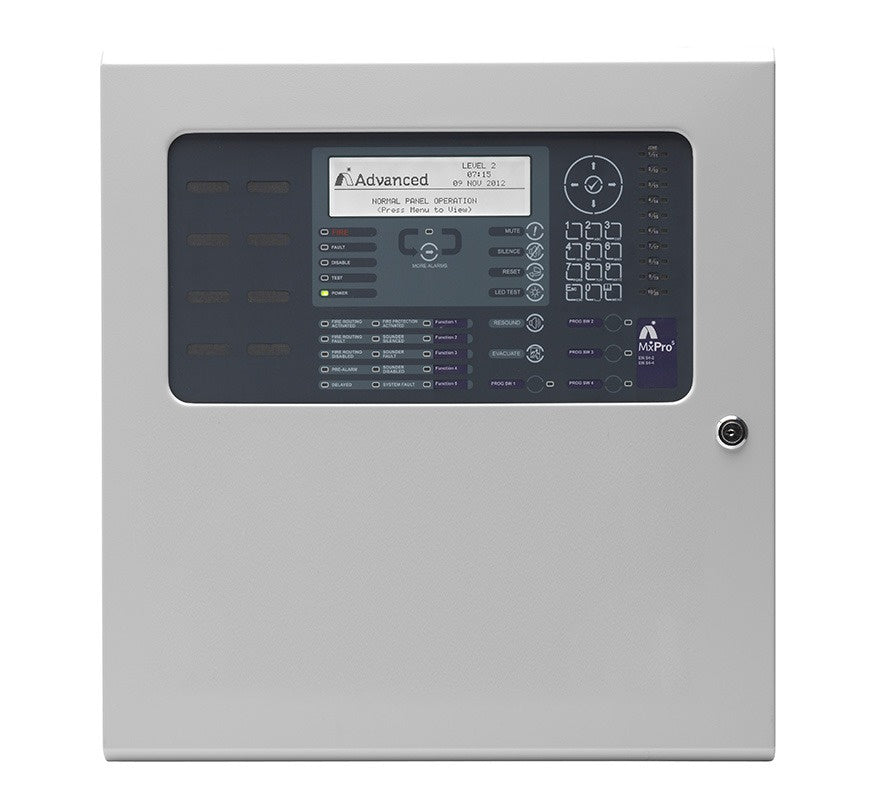

The Advanced MX-5201D is an MxPro 5 series 1-2 loop analogue addressable fire alarm control panel in the large-deep enclosure, supplied with one loop driver card fitted, for use with Apollo (XP95 / Discovery) and Hochiki ESP protocol devices.

Powerful cause-and-effect programming, dynamic zoning and enhanced trace diagnostics make it suitable for a wide range of sites, from small buildings to large, complex multi-area systems. It is compatible with AdvancedLive fire panel monitoring (UK and Ireland only).

The panel can be expanded to two loops by adding a second loop driver card (MXP-568).

Key features

• Apollo (XP95 / Discovery) and Hochiki ESP protocol support
• Dual flash-based microprocessors with real-time clock and enhanced trace diagnostics
• White backlit 240 x 64 graphical LCD with tactile alphanumeric keypad
• 20 programmable zonal LEDs with slide-in labels, plus 25 system LEDs
• 4 programmable function buttons with LED confirmation
• Up to 200 fire zones per panel by default, allowing full EN 54 compliance without additional hardware; up to 2,000 zones when networked
• Auto-learn, loop detection and on-board scope facility for easier commissioning and fault finding
• On-board Ethernet for AdvancedLive fire panel monitoring (UK and Ireland only)
• Dedicated USB and RS232 ports; programmable from the keypad or with PC-NeT-022 configuration software
• Integral P-Bus for system expansion with option cards
• Optional network card (MXP-503 standard or MXP-509 fault-tolerant) for peer-to-peer networking in a fault-tolerant loop or radial format
• Robust removable equipment chassis with plug-in connectors
• 3-year warranty

Technical specifications

• Loops: 1-2 loop panel, 1 loop driver card fitted
• Protocol: Apollo XP95 / Discovery and Hochiki ESP
• Loop driver card: MXP-568 (Apollo, Hochiki, Argus Vega)
• Devices per loop: Protocol dependent
• Loop current: 500mA per loop
• Fire zones: 200 per panel, 2,000 networked
• Sounder circuits: 2 x 1A programmable
• On-board relays: 2 x 1A 30V AC/DC programmable (10mA, 5V min), expandable to 4 with MXP-507
• Auxiliary supply: 1 x 24V 500mA
• Inputs: 1 x monitored programmable input; programmable key switch inputs: 8 volt-free inputs
• Total output current: 5A maximum (loops, sounders and auxiliary combined)
• Mains supply: 200-240V AC 50-60Hz (+10% / -15%), 1.4A max
• Charger: 2A, temperature compensated
• Ethernet: 10-Base-T / 100-Base-T (AdvancedLive connectivity, UK and Ireland only)
• Ports: 1 x RS232, 1 x USB B type
• Event log: 5,000 event and diagnostic plus 500 fire
• Enclosure: Steel, IP30, RAL 7035
• Dimensions (H x W x D): 475 x 450 x 190mm
• Cable entries: 30 x top, 11 x rear, 3 x bottom (20mm knockouts)
• Battery capacity: 24V 4Ah minimum, 24V 45Ah maximum internal (batteries not included)
• Operating temperature: -5°C to 40°C
• Humidity: 95% RH max
• Approvals: EN 54-2, EN 54-4, EN 50130-4, EN 55032, EN 62368-1, EN IEC 63000
