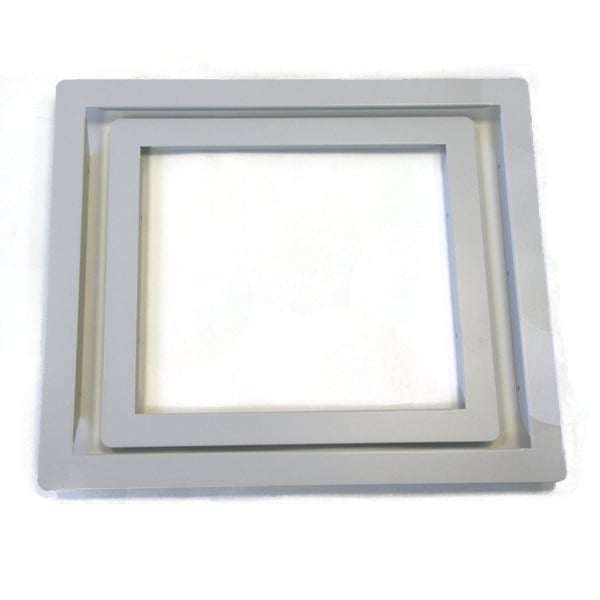

The Advanced MXM-536 is a semi-flushing bezel for MxPro 5 (Mx-5000) control panels in the extended enclosure. It is colour matched to Advanced fire alarm control panels (RAL 7035) and comes complete with a fitting kit, giving a quick, neat way to semi-recess the panel.
When recessing, allow an extra 5mm clearance on all sides so the bezel can be fitted to the back box. Enclosures carry an identification mark on the back box for positioning the pilot drill holes. The outer door always stands proud of the finished surface.
Key features
- Semi-flush fitting for the MxPro 5 extended enclosure
- Picture-frame effect with 30mm flange
- Colour matched, RAL 7035
- Supplied with fitting kit
Technical specifications
-
Bezel dimensions: 750mm (H) x 450mm (W)
-
Flange size: 30mm
-
Back box recessing depth: 175mm
-
Recess clearance: Extra 5mm on all sides
-
Colour: RAL 7035
-
For use with: MxPro 5 extended enclosure
