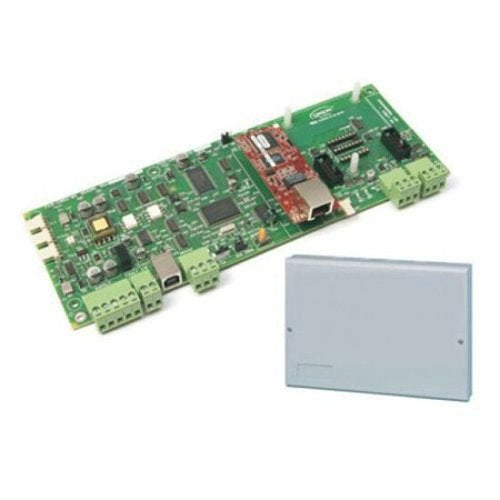

Advanced MXP-510-BX - GRAPHICS Interface (Boxed)

SKU: MXP-510-BXBrand: Advanced
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub31 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$765.00
918.00 inc. VAT765.00 ex VAT
Stock:
Only 3 units left
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Advanced MXP-510-BX - GRAPHICS Interface (Boxed) $765.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Sector based programming
  • Each BMS interface is individually programmable with the available dynamic cause and effects rules
  • Standard & fault tolerant network versions available in the range
  • Easily configured via PC-NET-003
  • 3-year warranty as standard

Frequently bought together

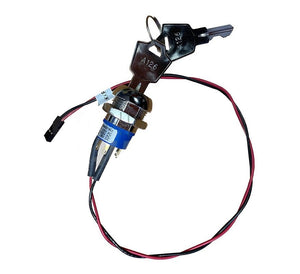

Advanced MXP-511 Access Enable Key switch for MX-5000 - JEM Systems UK

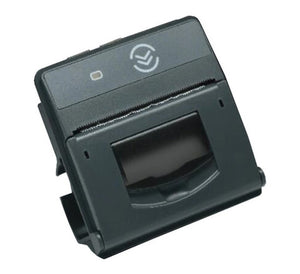

Advanced MXP-512 Printer Module - JEM Systems UK
Advanced Advanced MXP-512 Printer Module
Sale price$543.00
In stock

Product details

Advanced MXP-510-BX BMS / Graphics Interface (Boxed)

The Advanced MXP-510-BX is a boxed BMS and graphics interface that links building management systems and graphical control PCs to an Advanced MxPro 5 fire alarm network.

The BMS/Graphics Interface allows BMS systems and graphical control PCs to be integrated with the MxPro 5 series of fire control panels and remote terminals.

The interface is an integral part of the AdNet network, permitting the handling of all network traffic and event prioritisation, via a PC, using a simple RS232 connection.

Multiple interfaces can be connected to the network catering for sites requiring control from a number of graphical PCs.

Applications

Provides connection to various 3rd party graphics systems (with protocol translator)

Compatibility

Can be used with any Ad-NeT or Ad-NeT+ network series control panels.

Key Features:

  • Sector based programming
  • Each BMS interface is individually programmable with the available dynamic cause and effects rules
  • Standard & fault tolerant network versions available in the range
  • Easily configured via PC-NET-003
  • 3-year warranty as standard

Used for: connecting Advanced MxPro 5 networks to building management systems and fire graphics PCs.

Specification

Product code MXP-510-BX
Brand Advanced
Compatibility MxPro 5 panels on Ad-NeT or Ad-NeT+ networks
PC connection RS232
Supply 24V DC
Supply current 48mA standard (86mA fault-tolerant version) at 24V DC
Indicators LEDs for heartbeat, network Rx/Tx and RS232 Rx/Tx
Configuration PC-NET-003
Warranty 3 years

Frequently asked questions

Which panels does the MXP-510-BX work with?

It integrates with the MxPro 5 series of fire control panels and remote terminals, and can be used with any Ad-NeT or Ad-NeT+ network series control panels.

How does the interface connect to a PC?

It connects via a simple RS232 connection. Third-party graphics systems can be connected using a protocol translator.

How is the interface configured?

It is easily configured via PC-NET-003, and each BMS interface is individually programmable with the available dynamic cause and effect rules. A 3-year warranty is standard.

Datasheets & documents

Advanced MXP-510-BX datasheet (PDF)
