Advanced MXP-513L-050RY 50 Zone FIRE/FAULT (25 RED + 25 YEL)

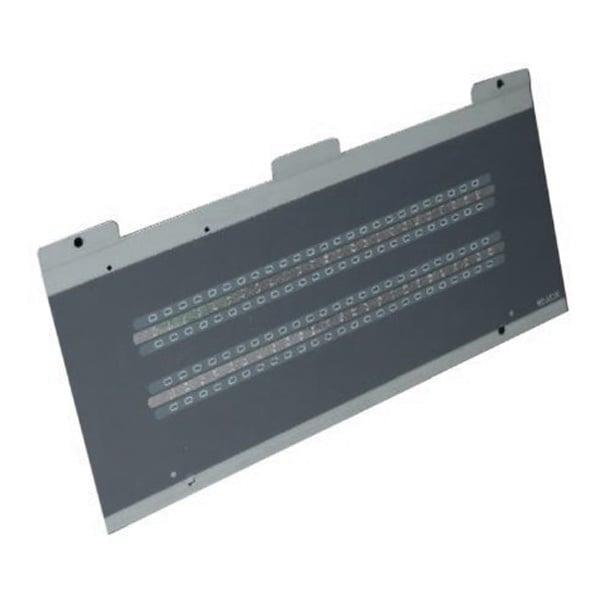

The Advanced MXP-513L-050RY is a 50-zone LED indicator card for MxPro 5 fire alarm control panels in the large enclosure, with 25 red Fire LEDs and 25 yellow Fault LEDs. It is supplied complete with a door.

Zone LED cards give an individual LED indication for each zone in addition to the panel's graphical display, and fully support dynamic zoning on networked or larger stand-alone systems. Each LED is fully programmable, so it can follow the cause-and-effect strategy and light on Fault, Isolation, Output Group and other conditions as well as Fire.

Key features

• 50 individual zone LEDs
• Programmable LEDs following the panel's cause and effect
• Supports dynamic zoning
• Factory fitted or retrofit
• Cost effective against ancillary hardware
• 3-year warranty as standard

Technical specifications

• Zones: 50
• LED arrangement: 25 x red (Fire) + 25 x yellow (Fault)
• Enclosure: Large enclosure, supplied with door
• Compatible panels: MX-5101L, MX-5101D, MX-5201L, MX-5201D, MX-5202L, MX-5202D, MX-5401 to MX-5404 and MX-5401D to MX-5404D
• Panel series: MxPro 5
