The Advanced Smart Watch Module (PC-NET-005-SWM) is a small, compact device used with Advanced's PC-Net Graphical Software Suite for remote network control and diagnostics of fire systems. This version covers 1 to 3 panels.

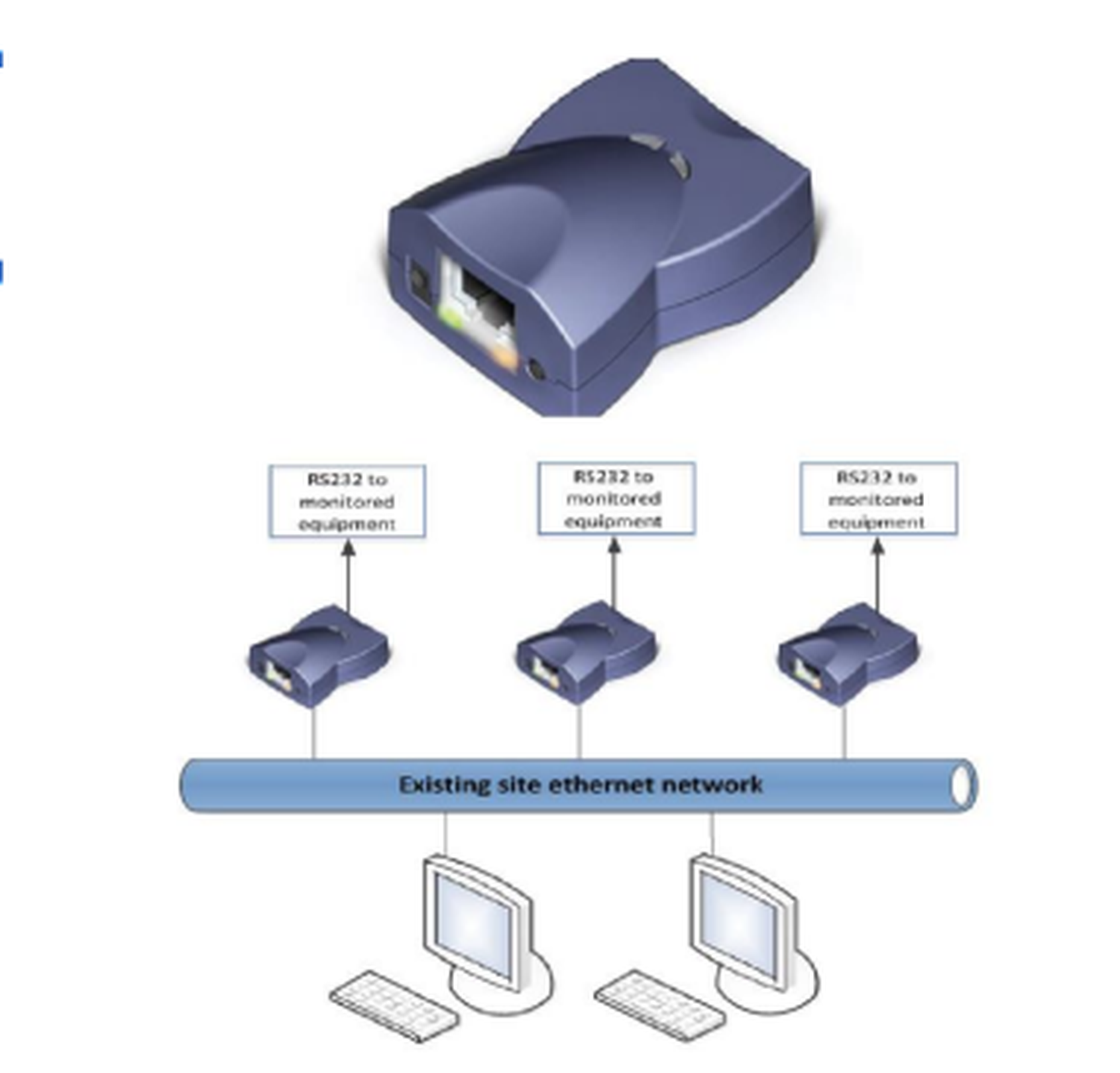

It uses static TCP/IP addressing over a local or wide area network (LAN or WAN), reducing the need for extra cabling and allowing remote sites to be monitored from a centrally located graphical software suite. The PC-Net graphical control software is compatible with all MxPro 4 and MxPro 5 control equipment.
Key features
- Small and compact
- Remote network control and diagnostics
- TCP/IP communication via static IP
- Direct connectivity to BMS / graphical interface via RS232
- Connect up to 255 remote sites
- Supports up to 15 remote panels per site
- Configured using the graphical software
Technical specifications
-
Part code: PC-NET-005-SWM (1-3 panels)
-
Other versions: PC-NET-005-SWM6 (4-6 panels), PC-NET-005-SWM15 (7-15 panels), PC-NET-005-SWM4R (4 input)
-
Communication: Static TCP/IP over LAN or WAN
-
Graphics interface link: RS232
-
Remote sites: Up to 255
-
Panels per site: Up to 15
-
Compatible software: Advanced PC-Net Graphical Software Suite (MxPro 4 and MxPro 5)
