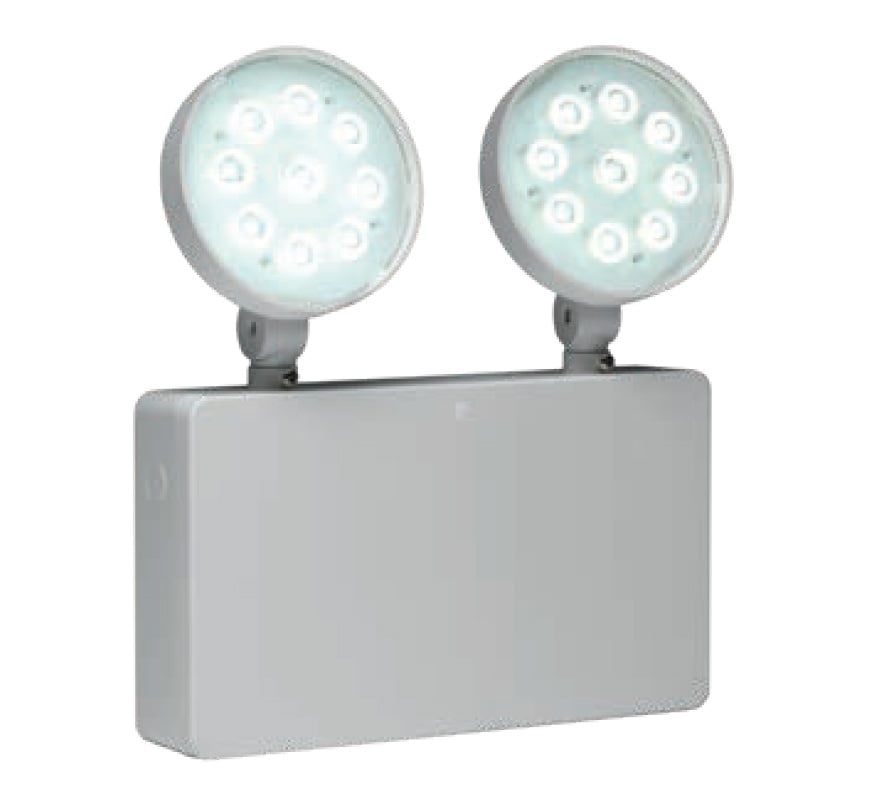

The Advanced TLED/NM3/P is a wall-mounted Twin-LED projector emergency luminaire from the LuxIntelligent addressable emergency lighting range. It gives a high level of emergency illumination across an area, using a lens system that produces high-intensity beam patterns across the working plane. It operates non-maintained, switching to emergency operation immediately on power failure.
Key features
- Two 3W LED projector heads, powered by integral NiCd batteries
- Non-maintained: runs for three hours on mains failure, or until power returns
- Ideal for high-risk task areas
- When wall mounted at 2.5m, can be spaced 25m apart to achieve 1 lux on a corridor centre line
- Projector heads can be mounted remotely from the control box; the unit can also be mounted with the projectors underneath
- 20mm knockouts for cable entry
- Fully compatible with the LuxIntelligent addressable test system
- Complies with BS EN 60598-2-22
Technical specifications
-
Part number: TLED/NM3/P
-
Supply voltage: 230V (220-240V), 50Hz
-
Supply / charging power: 2.9W
-
Light source: Two 3W LED heads, 9 white LEDs each
-
Light output: 2 x 380lm
-
Emergency duration: 3 hours
-
Recharge period: 24 hours
-
Battery: 3.6V 4.0Ah NiCd
-
Colour temperature: 5000K
-
IP rating: IP20
-
Insulation class: Class II
-
Ambient temperature: 25°C
-
Dimensions (W x H x D): 275 x 155 x 55mm; 300mm total height including heads
-
Weight: 3.6kg
-
Standard: BS EN 60598-2-22
