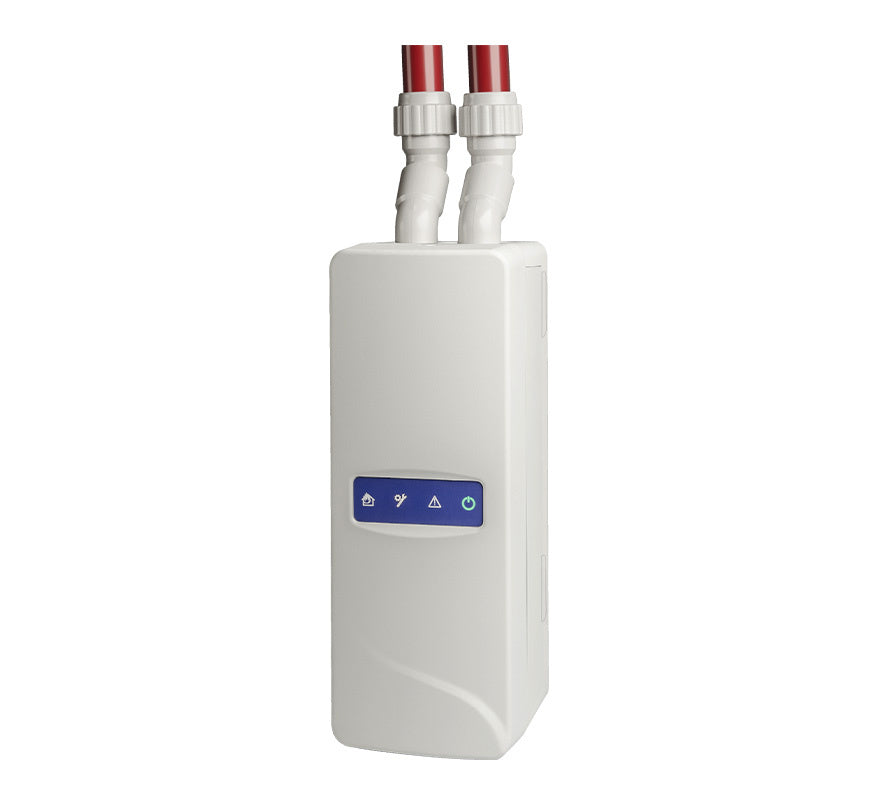

AirSense ModuLaser Aspirating Smoke Detector Module (9-30783)

The AirSense ModuLaser Aspirating Smoke Detector Module (9-30783) is the detector module of the ModuLaser modular aspirating smoke detection (ASD) system. Each module is self-contained: it draws air from the protected area through its own sampling pipe, analyses it with laser-based detection and uses ClassiFire to decide whether a pre-alarm or alarm should be raised.

Alarms and faults switch the module's own programmable relays and are reported to the ModuLaser display module (Minimum, Standard or Command) it is connected to. Because each module covers one pipe and zone, smoke can be located quickly and maintenance such as filter replacement can be carried out one module at a time.

Key features

• One sampling pipe and one zone per module, with no zone overlap
• Up to 250 m of combined sampling pipe per detector module
• Forward light scattering detection with environmental compensation to reduce nuisance alarms
• Docking station design: electronics can be removed during first-fix installation
• Quick-fit pipe adaptor system; pipe and cable entries at top or bottom
• Works with ModuLaser Minimum (9-30780), Standard (9-30781) and Command (9-30782) display modules

Technical specifications

• Detection principle: laser light scattering mass detection and particle evaluation
• Sensitivity: 0.002 to 25 %obs/m
• Particle sensitivity range: 0.003 to 10 microns
• Coverage: up to 3000 m² (subject to local approvals and installation standards)
• Sampling pipe: up to 250 m combined per module
• Sampling holes: up to 20 (Class A), 40 (Class B) or 50 (Class C) per module
• Inlet and exhaust: 27 or 25 mm OD, top or bottom
• Inputs: 2 supervised, programmable (15 kΩ end-of-line)
• Outputs: 3 programmable, voltage-free, 2 A at 30 VDC (NO/NC/C)
• Operating voltage: 18 to 30 VDC
• Current consumption at 24 VDC: 260 mA (fan speed 1), 380 mA (fan speed 6, default), 940 mA (fan speed 16)
• Event log: 20,000 events; chart recorder sampling period 1 to 60 s
• Dimensions: 110.5 x 133.5 x 300 mm (W x D x H)
• Weight: 1.57 kg
• Colour: grey-white (RAL 9002)
• Mounting: surface, vertical (0 or 180°)
• Operating temperature: -10 to +60°C (equipment); sampled air -20 to +60°C
• Relative humidity: 0 to 95% non-condensing
• Environment: indoor, IP40
• Certification: BOSEC, CPR, CSIRO, EN 54-20, LPCB, VdS (REACH and RoHS compliant)
