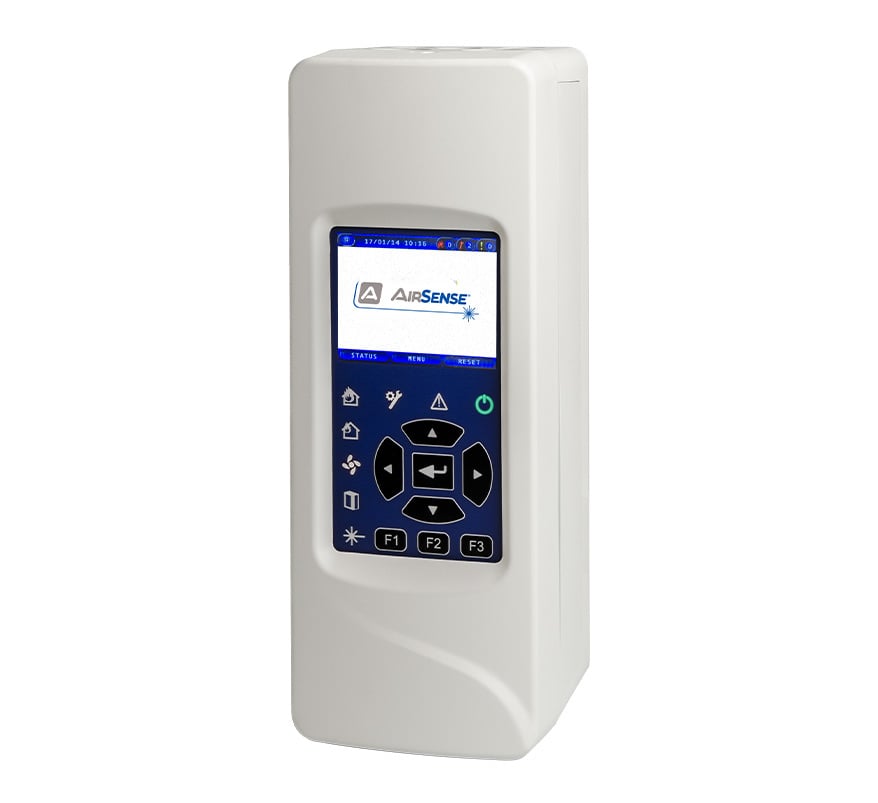

The AirSense 9-30781 is the Standard Display Module for the ModuLaser modular aspirating smoke detection (ASD) system. It has a colour TFT display, navigation buttons and status LEDs, and it controls and configures up to 8 ModuLaser detector modules. Display and detector modules communicate over RS-485, and zone alarm information can go to the main fire alarm panel through an APIC address card in the display module or through each detector module's own relays.
Key features
- Bright colour TFT display with navigation and control buttons for programming and diagnostics
- Supports up to 8 ModuLaser detector modules
- Configure from the front panel, from a PC with Remote software, or over SenseNET from a Command Display Module
- Graphical chart recording view
- Two USB ports: master (memory stick for configuration, event logs, chart recordings and firmware upgrades) and slave (PC connection)
- Docking-station design: electronics can be removed during first-fix installation
- SenseNET and SenseNET+ support over RS-485
Technical specifications
- Operating voltage: 18 to 30 V DC
- Current consumption: 232 mA at 24 V DC (Standard Display Module)
- Alarm levels: 4 (Aux, Pre-alarm, Alarm, Alarm 2)
- Event log: 20,000 events per module
- Connectivity: USB (x2), IP and APIC on display module
- Dimensions (W x D x H): 110.5 x 133.5 x 300 mm
- Net weight: 1.18 kg
- Colour: grey-white (RAL 9002); surface mounting
- Operating temperature: -10 to +60°C (equipment)
- Relative humidity: 0 to 95% non-condensing; indoor; IP40
- Certification: BOSEC, CPR, CSIRO, EN 54-20, LPCB, VdS
- Chart recorder: sampling period 1–60 s; capacity 1 month at 1 s, up to 5 years at 60 s
- Compatible: 9-30783 ModuLaser detector module
