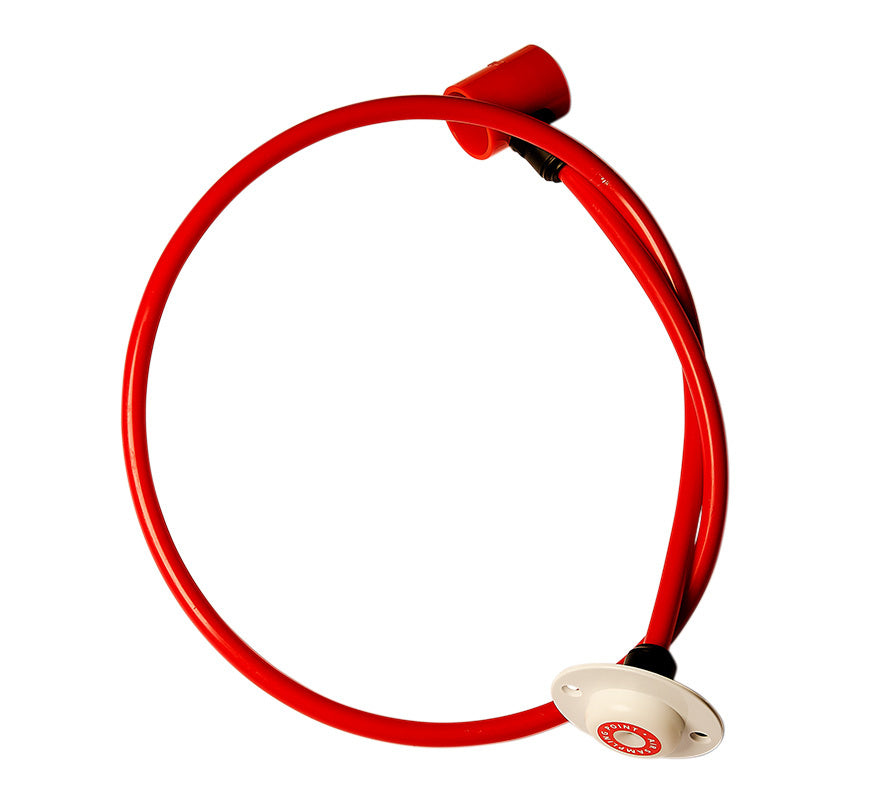

The AirSense Pattress Sampling Point Assembly Kit with T-Piece (9-10928) is a capillary sampling point assembly for AirSense aspirating smoke detection (ASD) systems. It is supplied complete with a 27 mm T-union, a 1 m length of 10 mm flexible sampling pipe and a pattress-style sampling point, which is fixed to the false ceiling with two screws.
Key features
- Complete kit: T-union, flexible capillary pipe and pattress sampling point
- Sampling point fixes to the ceiling with two screws
Technical specifications
- Sampling point diameter: 65 mm
- Capillary pipe: 10 mm outer diameter, 1 m long
- T-union: 27 mm diameter
- Colour: red, white
- Mounting type: insert
- Environment: indoor
What's in the box
- 27 mm T-union
- 1 m flexible sampling pipe (10 mm diameter)
- Sampling point
