Ajax 121295.09.WH1 MotionProtect U Jeweller, Wireless IR Motion Detector, White
SKU: 121295.09.WH1Brand: Ajax Systems
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Ajax 121295.09.WH1 MotionProtect U Jeweller, Wireless IR Motion Detector, White
£47.70
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Wireless PIR motion detector for Ajax security systems
- Security Grade 2 to EN 50131
- Detection range up to 12 m with an 88.5° horizontal angle
- Pet immune for animals up to 20 kg and 50 cm tall
- Three sensitivity levels, set remotely in the Ajax apps
- Temperature compensation for reliable detection
Frequently bought together
Ajax Systems
Ajax 121296.09.BL1 MotionProtect U Jeweller, Wireless IR Motion Detector, Black
Sale price£47.70
In stock
Ajax Systems
Ajax 121299.11.WH1 HomeSiren Jeweller, Wireless Siren with LED Connector, White
Sale price£57.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Ajax Systems
Ajax 125717.314.WH GlandBox Wiring Accessory, EN54, White
Sale price£44.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

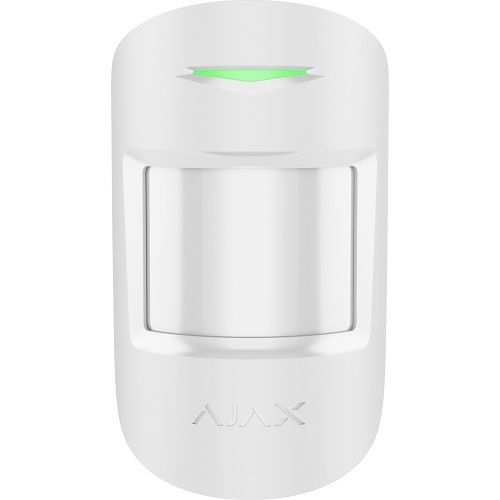

The Ajax MotionProtect U Jeweller (121295.09.WH1) is a wireless indoor PIR motion detector in white, made to meet UK Grade 2 security standards. It detects movement up to 12 metres away, ignores pets up to 20 kg, and talks to an Ajax hub over the Jeweller radio protocol. It mounts on the SmartBracket panel, so installation is quick, and settings can be changed remotely in the Ajax apps.
Key features
- Wireless PIR motion detector for Ajax security systems
- Security Grade 2 to EN 50131
- Detection range up to 12 m with an 88.5° horizontal angle
- Pet immune for animals up to 20 kg and 50 cm tall
- Three sensitivity levels, set remotely in the Ajax apps
- Temperature compensation for reliable detection
- Up to 5 years of operation on the pre-installed battery

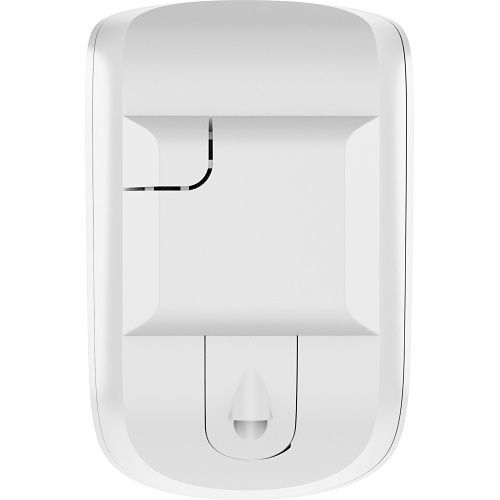

- SmartBracket mounting panel for quick installation
Technical specifications
- Part number: 121295.09.WH1
- Sensor: PIR
- Detection range: up to 12 m (mounted at 2.4 m)
- Detection angle: 88.5° horizontal
- Pet immunity: up to 20 kg, 50 cm height
- Radio protocol: Jeweller, 868.0 to 868.6 MHz
- Communication range: up to 1,700 m to a hub or range extender (open space)
- Battery: 1 x CR123A (pre-installed), up to 5 years
- Grade: Security Grade 2 (EN 50131-1, EN 50131-2-2, EN 50131-5-3, EN 50131-6)
- Operating temperature: -10°C to +40°C
- Operating humidity: up to 75%
- Protection: IP50, IK04 (indoor use only)
- Dimensions: 110 x 65 x 50 mm
- Weight: 96 g
- Colour: white
What's in the box
- MotionProtect U Jeweller detector
- SmartBracket mounting panel with holding screw
- CR123A battery (pre-installed)
- Installation kit
- Quick start guide
Note: requires a compatible Ajax hub or range extender.
Downloads
Product datasheet
Ajax 121295.09.WH1 MotionProtect U Jeweller, Wireless IR Motion Detector, White Product datasheet · 121295.09.WH1 · PDF Open datasheet
