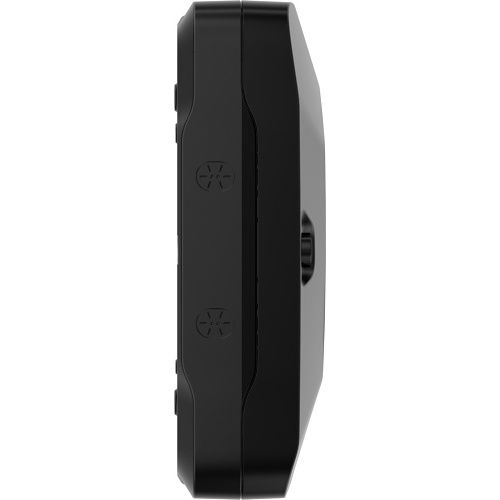

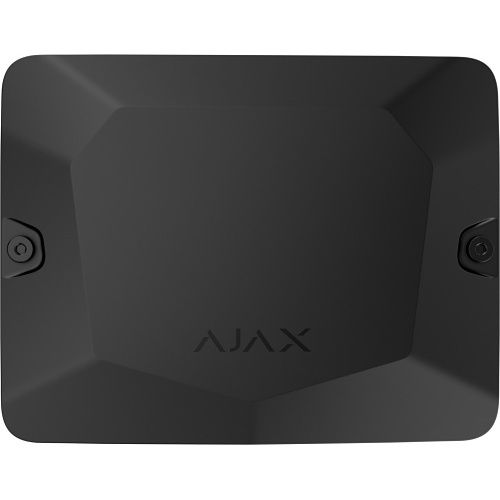

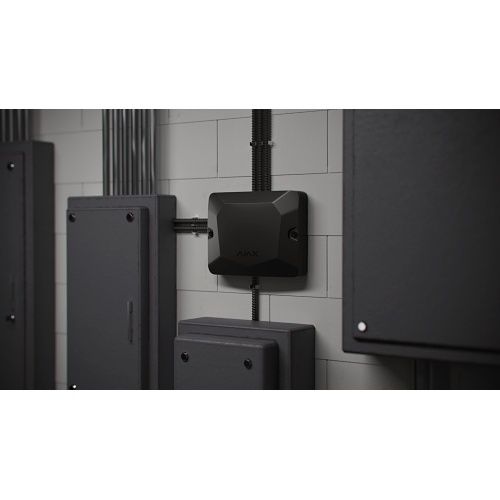

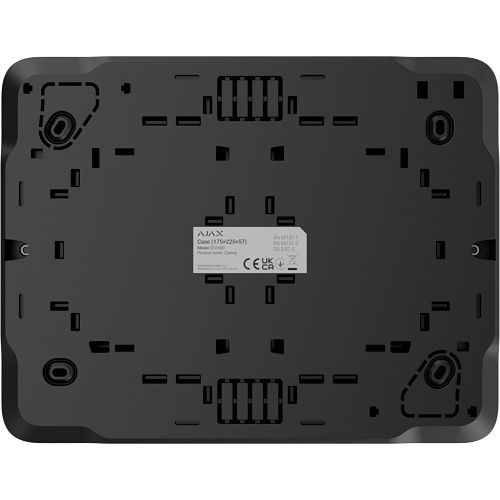

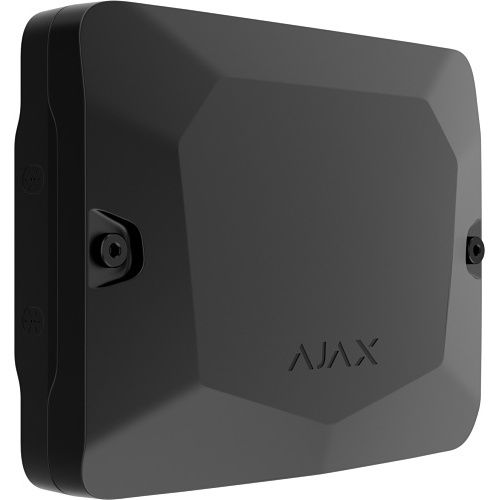

Case B (175) with dimensions 175 × 225 × 57 mm has 2 slots for Superior LineProtect Fibra, Superior LineSplit Fibra, Superior MultiTransmitter IO (4X4) Fibra, or Superior MultiRelay Fibra.
Main Features
Ajax Cases feature plastic latches that firmly secure your devices, and sliding them allows for easy device removal.
Cable fasteners inside the case help keep cables organised and tidy, ensuring a clean and efficient installation.
Plastic stoppers protect your installed devices during drilling, ensuring precision and preventing damage.
A bubble level is integrated into the case for checking the mount’s inclination angle during installation
Recesses for drilling, available in 16mm or 20mm diameter, keep drill bits in place, ensuring accurate installation. Use a hole saw designed for plastic is recommended.
Wider holes are included to accommodate installation errors and ensure a secure fit
Ajax Cases come equipped with a tamper board, providing an additional layer of security. This board connects to the device connector and protects the installed device from sabotage.
Ajax Cases allow you to rotate the device by 180°, offering two fixed positions for installation, and the lid of Case A (106) can also be rotated 180° for added convenience
Latches on the casing ensure the lid remains securely in place during installation, preventing any accidental dislodgement.
Specifications
Limited Warranty
Not provided
Certifications & Standards
EN 50131-1:2006/ A1:2009/ ?2:2017/ A3:2020; EN 50131-3:2009; EN 60670-1:2005; EN IEC 63000:2018; PD 6662:2017
