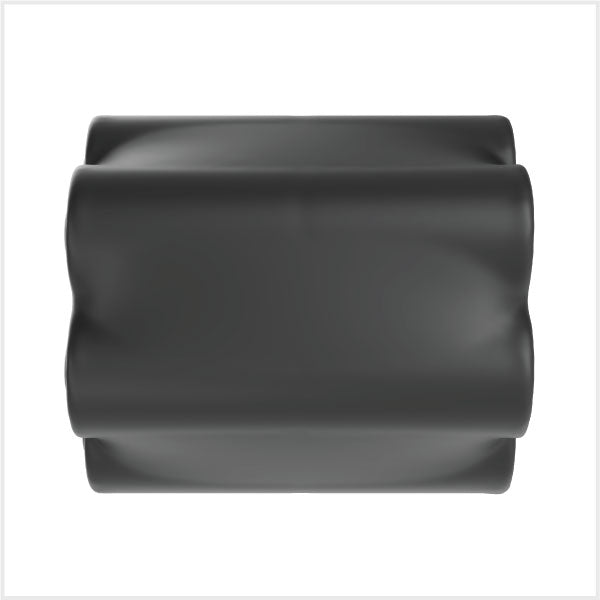

Ajax Internal Battery NB 7 2V/95Ah
£85.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Non-rechargeable lithium thionyl chloride chemistry with HPC-1520 pulse capacitor
- Built from 10 x ER34615 cells
- Nominal 7.2 V, 95 Ah capacity
- For indoor use only; must not be recharged or short-circuited
- Install with the cable outlet facing upwards to minimise capacity loss
- Capacity can fall significantly at very low temperatures
Frequently bought together
Ajax Systems
Ajax JunctionBox (118) ASP Black
Sale price£10.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Ajax Systems
Ajax 56210.08.WH1 LeaksProtect 8EU GB Wireless Addressable Flood Detector
Sale price£49.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The Ajax Internal Battery NB (7.2V/95Ah) is a non-rechargeable lithium thionyl chloride battery pack used to power the Ajax Hub BP Jeweller battery-powered control panel. It is fitted inside the compatible hub casing and is maintenance-free.
Key features
- Non-rechargeable lithium thionyl chloride chemistry with HPC-1520 pulse capacitor
- Built from 10 x ER34615 cells
- Nominal 7.2 V, 95 Ah capacity
- For indoor use only; must not be recharged or short-circuited
- Install with the cable outlet facing upwards to minimise capacity loss
- Capacity can fall significantly at very low temperatures
Specification
| Product code | 121874.313.NC (Internal Battery NB 7.2V/95Ah) |
|---|---|
| Brand | Ajax Systems |
| Compatibility | Hub BP Jeweller |
| Chemistry | Lithium thionyl chloride (non-rechargeable) |
| Nominal voltage | 7.2 V DC |
| Capacity | 95 Ah |
| Maximum load current | 700 mA |
| End-of-life voltage | 4 V DC |
| Connector | Molex 2139-2 |
| Dimensions | 135 x 65 x 105 mm |
| Weight | 990 g |
| Operating temperature | -55 to +85 C |
| Operating humidity | Up to 75% |
Datasheet
Ajax Internal Battery NB 7 2V/95Ah Need the datasheet? Our team will email it to you. Request datasheet
