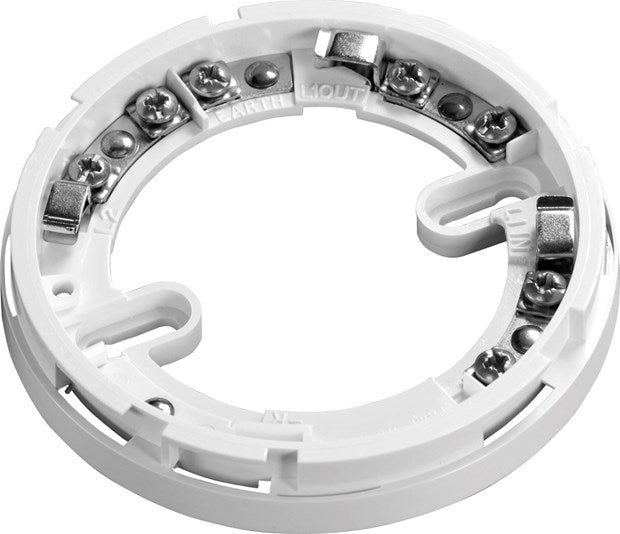

The Apollo 45681-211APO Isolator Base is a dedicated base for the Apollo Isolator 55000-720 on XP95, Discovery and CoreProtocol addressable loops. The isolator is placed at intervals around the loop so that, if a short circuit occurs, only the section between two isolators is affected; power and data are restored automatically once the fault is cleared. The base is designed to accept only the 55000-720 isolator.
Key features
- Accepts only the Isolator 55000-720; the isolator will not fit a standard addressable base
- Used with negative-type isolators; polarity sensitive, so wire as shown on the base label
- Earth terminal provided for screen continuity
- Up to 20 detectors (or equivalent) may be installed between isolators
- 10-year warranty
Technical specifications
- Part number: 45681-211APO
- Compatible isolator: 55000-720
- Protocol: XP95, Discovery and CoreProtocol compatible
- Operating voltage: 17 to 28V dc
- Quiescent current: 35µA
- Maximum current drawn: 8.5mA
- Maximum line impedance: 50Ω
- Operating temperature: -30°C to +80°C
- Humidity: 10% to 93% RH (no condensing or icing)
- Dimensions: 100mm diameter x 35mm high
- Material: white flame-retardant polycarbonate; nickel-plated stainless steel terminals
- Approvals: LPCB (datasheet); FM, DNV.GL (product page)
