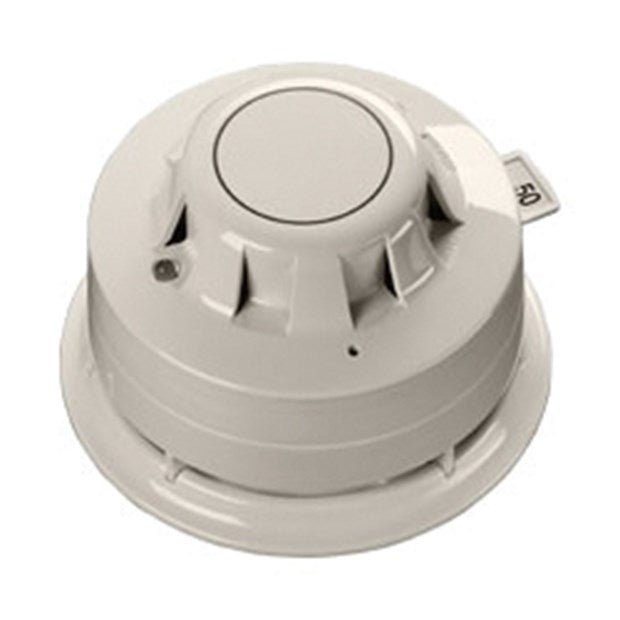

Apollo 45681-276APO XP95 Sounder Base - Ancillary
£21.90
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Loop-powered from the fire panel - no separate power supply needed
- Two Apollo tones: alternating 990Hz / 630Hz at 0.5 second intervals
- Volume adjustable from 70dB(A) to 85dB(A); 85dB(A) at 1m for only 3mA
- Activated via the fitted detector head, so it does not take up a loop address
- Low current noise - up to 126 sounders per loop (confirm with the Apollo loop calculator)
- EN 54-3 sounder; base is EN 54-17 isolated
Frequently bought together
![Apollo 45681-286MAR XPERT 7 Marine Base - Isolating [SIL2] - JEM Systems UK](http://jemsystems.co.uk/cdn/shop/files/apollo-default-title-apollo-45681-286mar-xpert-7-marine-base-isolating-sil2-45681-286mar-63957684715893.jpg?v=1766067704&width=620)
Apollo
Apollo 45681-290APO Discovery Sounder Base - Slow Whoop - Isolating
Sale price£26.85
In stockProduct details

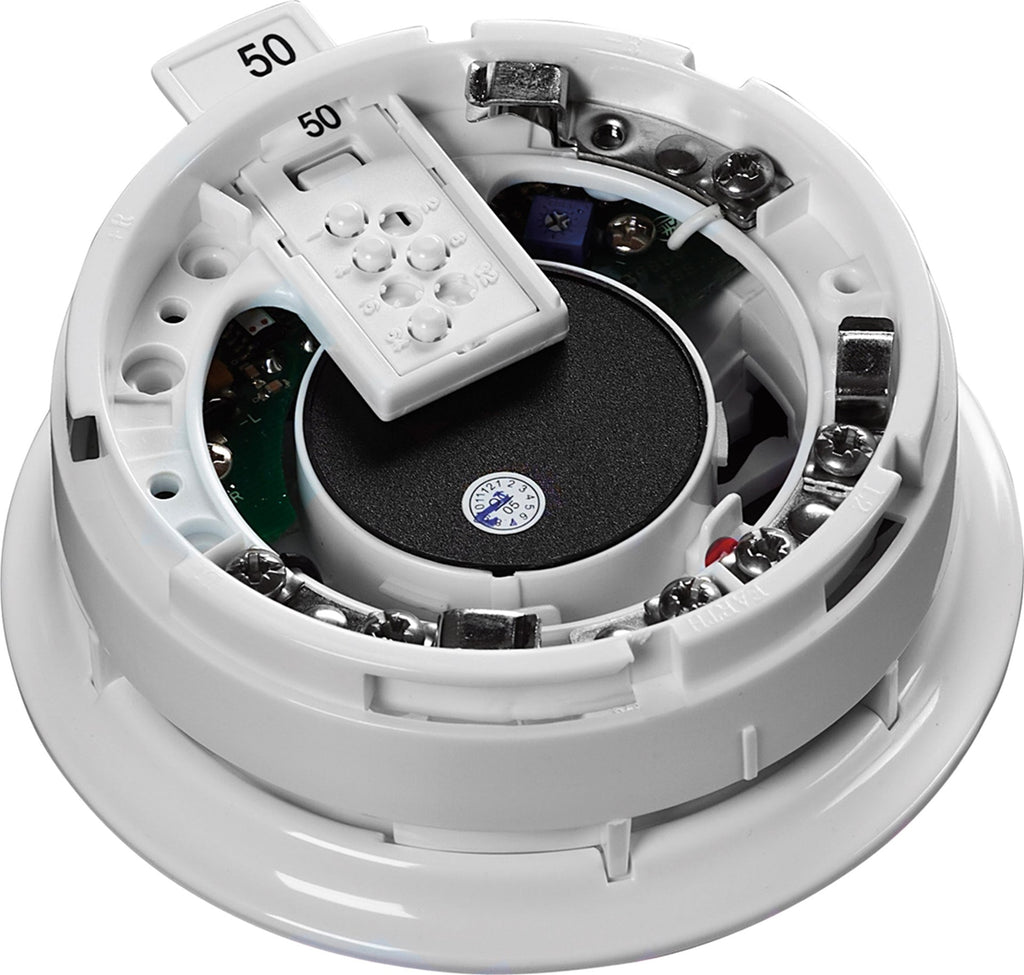

The Apollo 45681-276APO is an ancillary base sounder for the XP95 and Discovery analogue addressable ranges. It combines a 4 inch mounting base with a loop-powered sounder, and is switched by the remote indicator output of the detector or beacon fitted to it, so it does not use an address of its own. It is designed for indoor use.
Key features
- Loop-powered from the fire panel - no separate power supply needed
- Two Apollo tones: alternating 990Hz / 630Hz at 0.5 second intervals
- Volume adjustable from 70dB(A) to 85dB(A); 85dB(A) at 1m for only 3mA
- Activated via the fitted detector head, so it does not take up a loop address
- Low current noise - up to 126 sounders per loop (confirm with the Apollo loop calculator)
- EN 54-3 sounder; base is EN 54-17 isolated
- Works on XP95, Discovery and CoreProtocol systems; no synchronisation or pulsed tone
Specification
| Product code | 45681-276APO |
|---|---|
| Brand | Apollo |
| Range | XP95 / Discovery |
| Type | Ancillary base sounder (non-addressable) |
| Operating voltage | 17-28V DC, loop-powered |
| Sound output | 70-85dB(A) adjustable |
| Approvals | EN 54-3 |
| Material | White polycarbonate, stainless steel contacts |
| Dimensions | 115mm diameter x 38mm depth |
| Environment | Indoor |
Datasheet
Apollo 45681-276APO XP95 Sounder Base - Ancillary Need the datasheet? Our team will email it to you. Request datasheet
