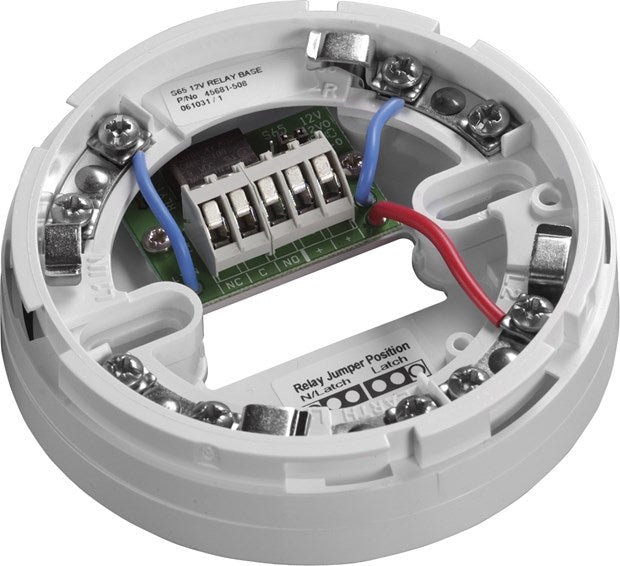

Apollo 45681-508APO Series 65 Base - Relay (12V)

The Apollo 45681-508APO is a 12V relay base for Apollo Series 65 conventional smoke and heat detectors. It is often used to add smoke or heat detection to intruder alarm systems. A jumper on the PCB sets the base to latching for fire systems or non-latching for security systems, and the relay gives volt-free changeover contacts when the detector goes into alarm.

Key features

• 12V relay base for Series 65 conventional detectors
• Jumper selectable latching (fire) or non-latching (security) operation
• In non-latching mode the base resets itself about 15 seconds after an alarm clears
• Changeover relay contacts (NC, C, NO)
• Detector locking mechanism
• One-way fit
• Easy to wire, with an earth connector

Technical specifications

• Part number: 45681-508APO
• Supply voltage: 9 to 15V DC
• Quiescent current: less than 10µA at 12V
• Alarm current (relay operated): less than 20mA at 12V
• Relay contact rating: 1A resistive, less than 50V AC or 75V DC
• Terminals: solid or stranded cable up to 2.5mm²
• Dimensions: 100mm diameter x 25mm deep
• Weight: 100g
• Operating temperature: -20°C to +70°C (no condensation or icing)
• Compatibility: Apollo Series 65 smoke and heat detectors only

Note: detector sold separately, for example the Apollo 55000-317APO Series 65 optical smoke detector. Do not connect an external wire to the -R terminal.
